TRANSMISSION

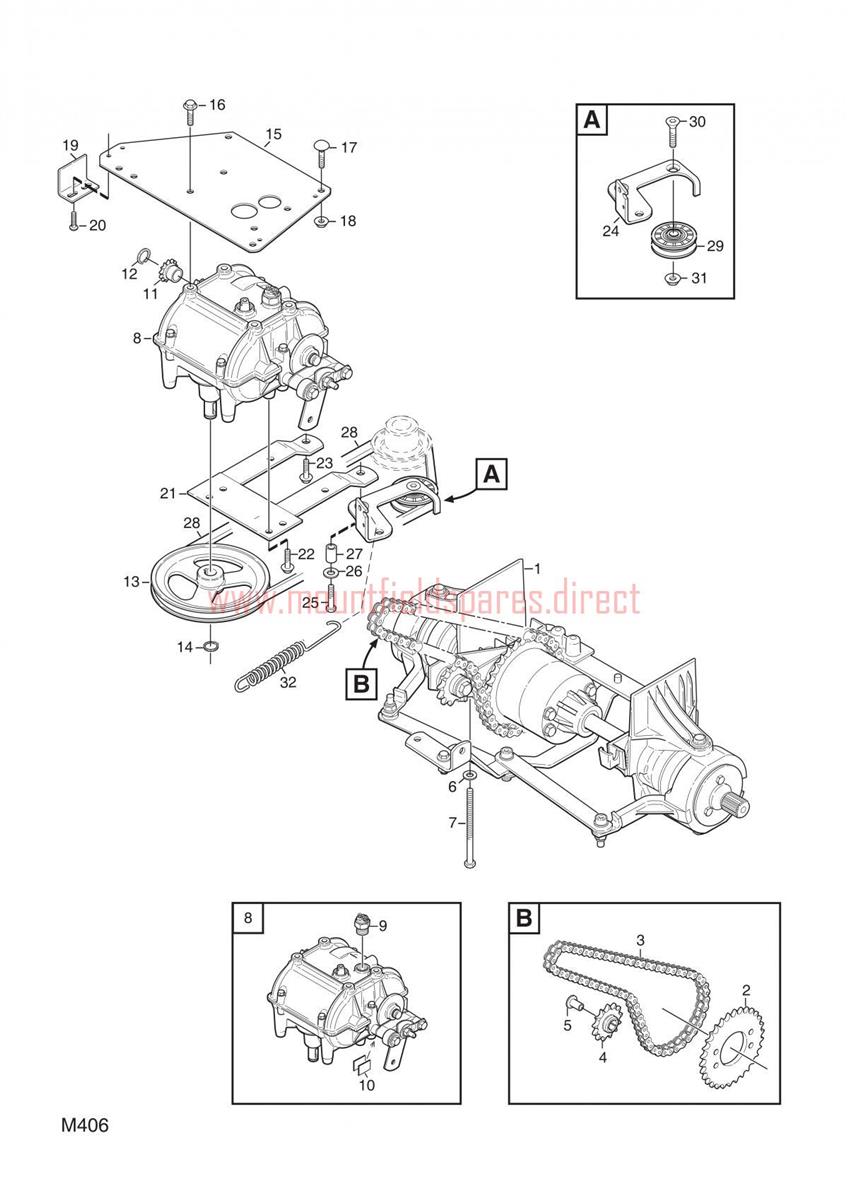

TRANSMISSION assembly details for Mountfield 1125M 2008 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-6650-01	REAR AXLE ASSY	£940.54	Add to
002	1134-6667-01	CHAIN WHEEL	£47.00	Add to
003	1134-7771-01	CHAIN W CHAIN LOCK	£89.43	Add to
004	1134-3820-01	SPROCKET	£17.45	Add to
005	1134-3797-01	SPACER	£21.14	Add to
006	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
007	9997-0814-02	SCREW M6S M8 x 140	£4.52	Add to
008	1134-6717-01	GEARBOX	£497.66	Add to
009	1134-7381-01	SWITCH-NEUTRAL	£42.53	Add to
010	F000-7109-00	FRICTION PAD (OBSOLETE) (OBSOLETE)	N/A
011	1134-6652-01	SPROCKET	£57.52	Add to
012	9651-0016-04	CIRCLIP	£2.06	Add to
013	1134-6494-01	BELT PULLEY	£75.23	Add to
014	112608950/0	CIRCLIP D=0,584TO D=0,569	£2.06	Add to
015	1134-6481-01	GEARBOX PLATE	£23.03	Add to
016	1134-4242-01	SPACER WASHER	£4.78	Add to
017	9897-0850-12	SCREW	£2.18	Add to
018	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
019	1134-6564-01	NEUTRIAL STOP BRKT	£6.58	Add to
020	9893-0616-16	SCREW M6 x 16	£2.47	Add to
021	1134-6487-01	CONSOLE	£30.54	Add to
023	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
024	1134-6505-01	CLUTCH LEVER	£17.90	Add to
025	9997-0840-16	SCREW M6S M8 x 40	£2.06	Add to
026	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
027	1134-1565-06	SPACER	£11.32	Add to
028	9585-0174-01	V-BELT	£26.23	Add to
029	387605008/0	TENSION PULLEY [GREY]	£35.71	Add to
030	9924-1035-16	SCREW MF6S M10 x 35	£6.27	Add to
031	9739-1031-22	NUT M10	£2.32	Add to
032	1134-6692-01	SPRING	£5.21	Add to
