4125M FOOT CONTROLS

4125M FOOT CONTROLS assembly details for Mountfield 4125M-4135H-4155H 2005 model

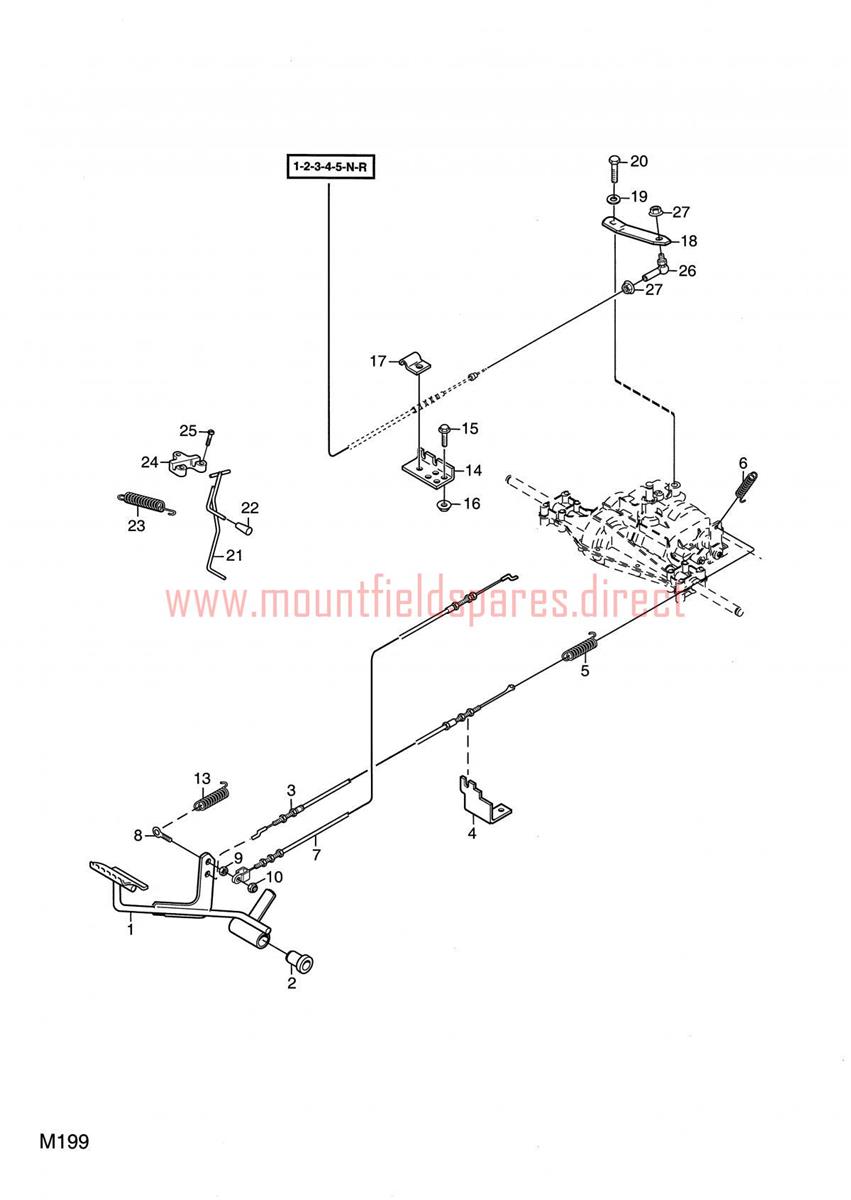

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-4247-01	BRAKE/CLUTCH PEDAL	£71.45	Add to
002	1134-9024-01	PLASTIC BUSH (4 PCS)	£19.66	Add to
003	1134-3410-02	BRAKE CABLE	£53.42	Add to
004	1134-3403-01	WIRE HOLDER	£18.51	Add to
005	1134-3280-01	SPRING	£19.90	Add to
006	1134-3974-02	SPRING	£26.18	Add to
007	1134-4058-01	CABLE	£84.77	Add to
008	1134-2991-01	EYE BOLT	£7.04	Add to
009	9739-0531-22	NUT M5	£2.47	Add to
010	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
013	1134-3974-01	SPRING	£12.40	Add to
014	1134-3400-01	ANGLE PLATE	£45.26	Add to
015	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
016	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
017	1134-2021-01	CLAMP	£7.36	Add to
018	1134-4048-02	GEAR SHIFTER ARM	£26.20	Add to
019	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
020	112735520/0	"HEX-HEAD SCREW 1/4"" x 5/8"""	£2.06	Add to
021	1134-5353-01	BRAKE ROD	£29.61	Add to
022	1134-2786-01	PLASTIC KNOB	£6.42	Add to
023	1131-1497-01	BRAKE SPRING	£10.50	Add to
024	1134-4002-01	BRAKE ROD ATTACHMENT	£12.27	Add to
025	9838-9516-12	SCREW K50 x 16	£2.47	Add to
026	9570-0001-00	ELBOW LINK	£18.90	Add to
