MOWER DECK 92 cm CONTROLS

MOWER DECK 92 cm CONTROLS assembly details for Mountfield 2100 Series Mower Decks 85-92 2005 model

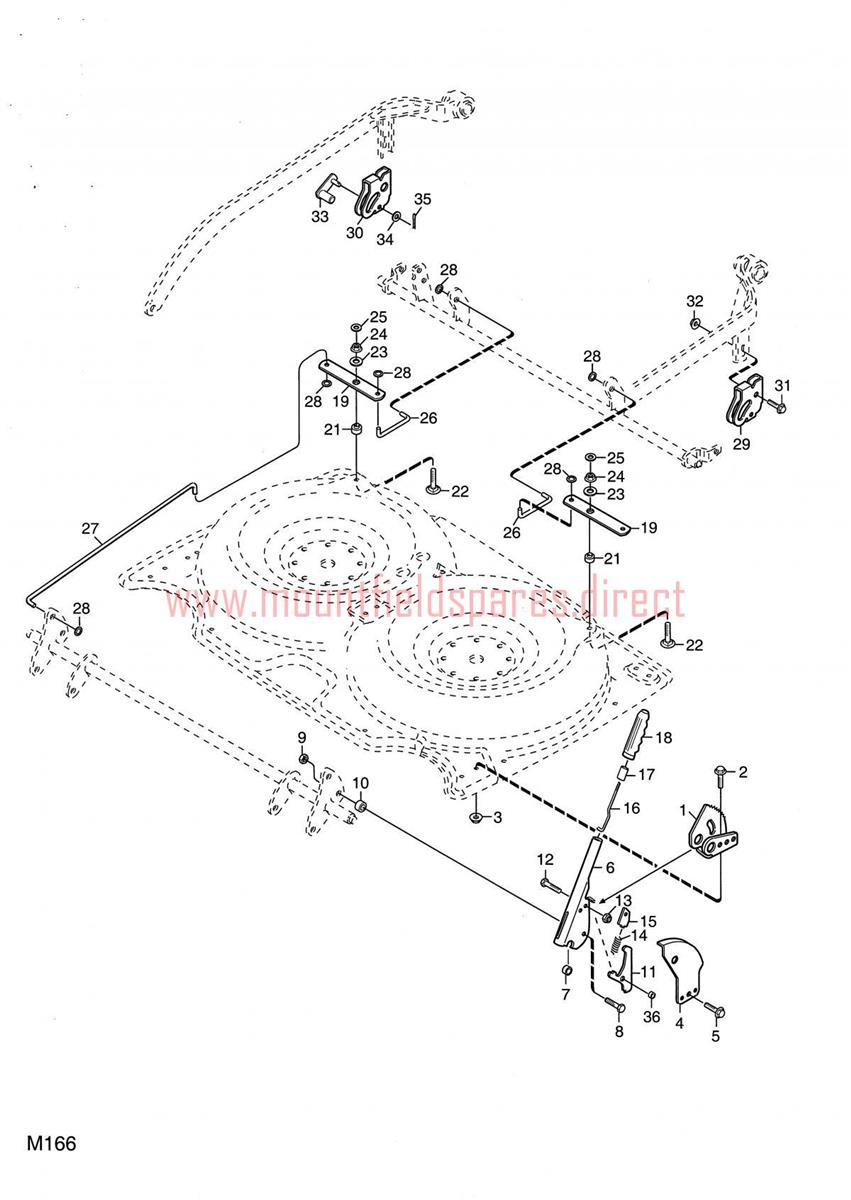

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-4536-01	HEIGHT ADJUST QUADRANT	£52.06	Add to
002	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
003	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
004	1134-4291-03	HEIGHT ADJUST QUADRANT	£35.71	Add to
005	1134-4242-01	SPACER WASHER	£4.78	Add to
006	1134-5215-01	HEIGHT ADJUSTMENT LEVER ASSEMBLY (OBSOLETE)	N/A
007	1134-2427-01	SPACER	£9.54	Add to
008	9997-0840-16	SCREW M6S M8 x 40	£2.06	Add to
009	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
010	1134-3113-03	SPACER	£10.33	Add to
011	1134-3010-02	LOCKING QUADRANT	£35.71	Add to
012	9997-0620-16	SCREW M6S M6 x 20	£2.06	Add to
013	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
014	1134-3262-01	SPRING	£8.73	Add to
015	1134-3009-01	LOCKING KEY	£28.90	Add to
016	1134-3041-01	CONTROL ROD	£28.90	Add to
017	1134-0041-04	BUSH	£11.46	Add to
018	9406-0006-00	HANDLE	£8.91	Add to
019	1134-4296-02	PIVOT ARM	£35.71	Add to
021	1134-4298-02	SPACER	£15.41	Add to
022	9897-0850-12	SCREW	£2.18	Add to
023	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
025	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
026	1134-4894-03	PUSH ROD	£12.05	Add to
027	1134-4294-04	PUSH ROD	£34.35	Add to
028	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
029	1134-4304-03	ADJUSTING PLATE-LH (5-01)	£41.88	Add to
030	1134-4304-10	Adjusting plate-RH (OBSOLETE)	N/A
033	1134-4307-01	CATCH	£42.12	Add to
034	112521330/0	WASHER M6 6.4 x 12 x 1.6	£2.06	Add to
035	9599-0054-02	SPLIT PIN	£2.32	Add to
036	1134-5114-01	SPACER	£9.54	Add to
