DEFLECTOR ART.NR 13-0916-11

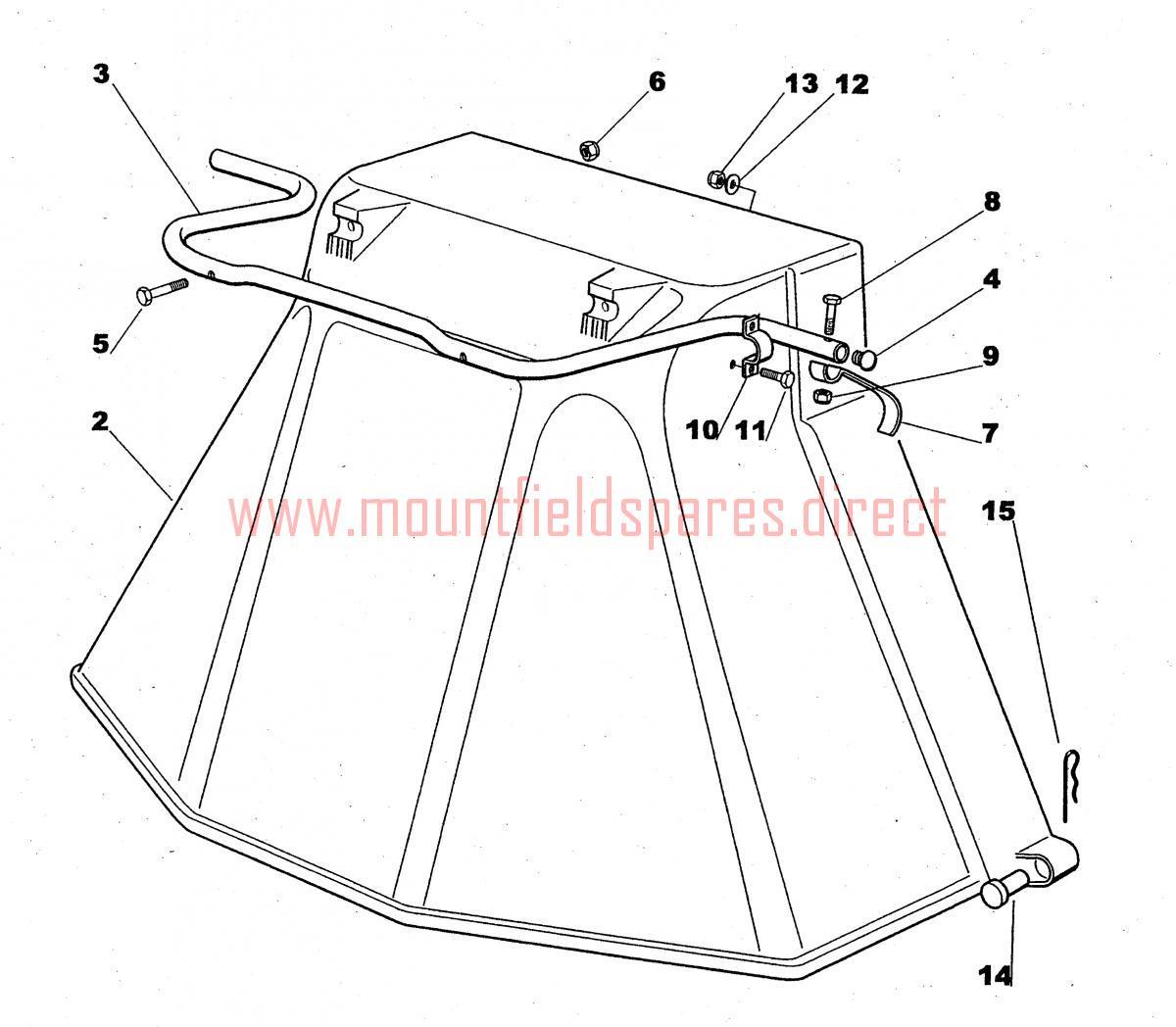

DEFLECTOR ART.NR 13-0916-11 assembly details for Mountfield LAWN-TRACTORS ACCESSORIES 2005 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	484598062/0	DEFLECTOR GUARD	£79.98	Add to
003	327869053/0	SUPPORT PIPE	£25.67	Add to
004	118566113/0	CAP	£2.06	Add to
005	112674700/0	SCREW M6 X 35	£2.06	Add to
006	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
007	325547053/0	GRASSCATCHER SWITCH PLATE	£5.87	Add to
008	112791500/0	SCREW TE M6x25 UNI 5739 ACC.8.8	£2.06	Add to
010	325547049/0	AXLE FIXING PLATE	£3.55	Add to
011	112788910/0	HEX-HEAD SCREW M5 x 16	£2.06	Add to
012	112523020/0	WASHER M5 5.5 x 15 x 1.6	£2.06	Add to
013	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
014	125510022/1	PIN	£3.40	Add to
015	124487998/0	R CLIP D=2	£2.06	Add to
