DEFLECTOR ART.NO 13-0915-11

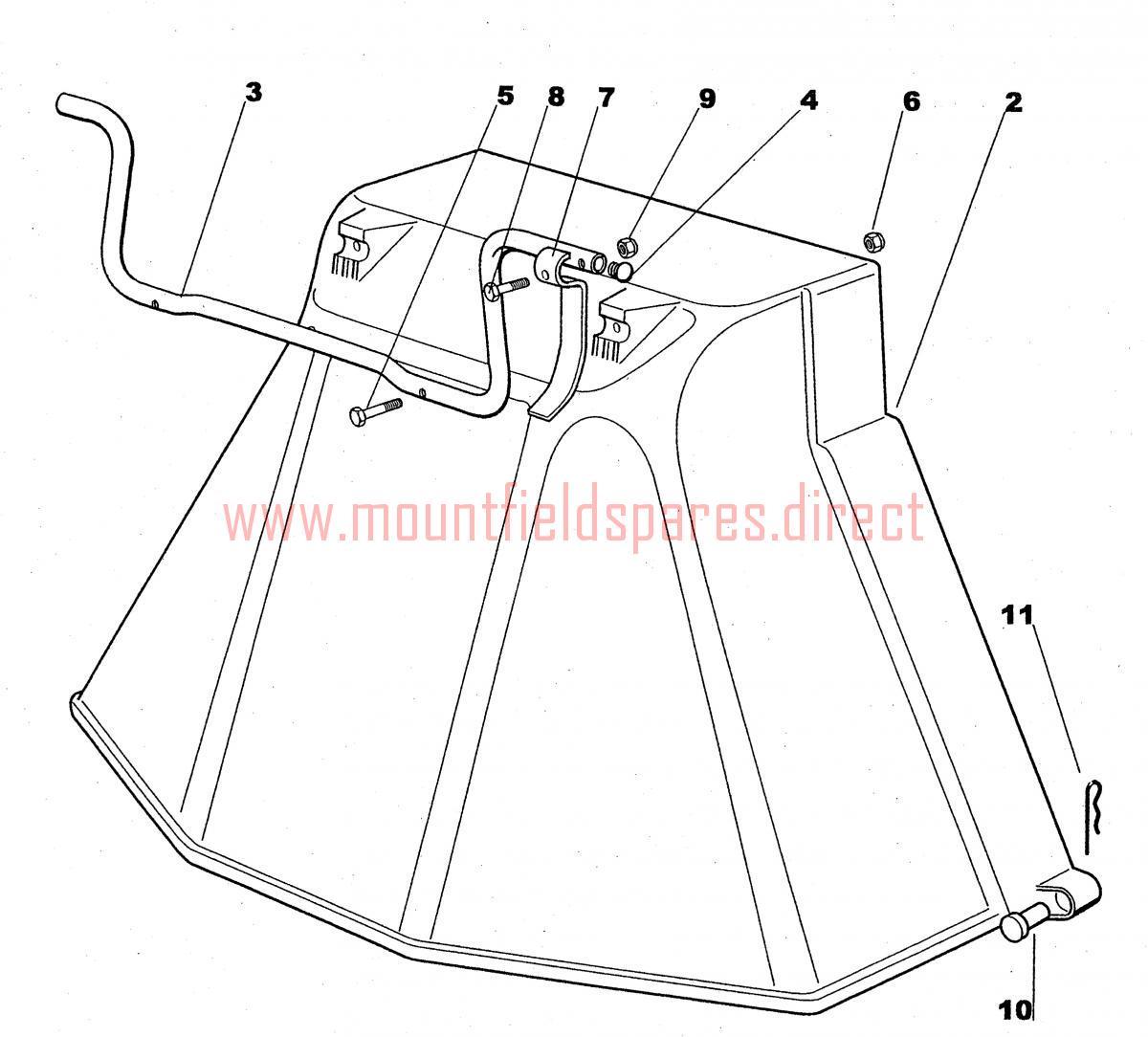

DEFLECTOR ART.NO 13-0915-11 assembly details for Mountfield LAWN-TRACTORS ACCESSORIES 2005 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	1136-0504-01	Ejection guard (OBSOLETE)	N/A
003	1136-0356-01	Support (OBSOLETE)	N/A
004	118566113/0	CAP	£2.06	Add to
005	112674700/0	SCREW M6 X 35	£2.06	Add to
006	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
007	325547053/0	GRASSCATCHER SWITCH PLATE	£5.87	Add to
008	112791500/0	SCREW TE M6x25 UNI 5739 ACC.8.8	£2.06	Add to
010	125510022/1	PIN	£3.40	Add to
011	124487998/0	R CLIP D=2	£2.06	Add to
