Mask

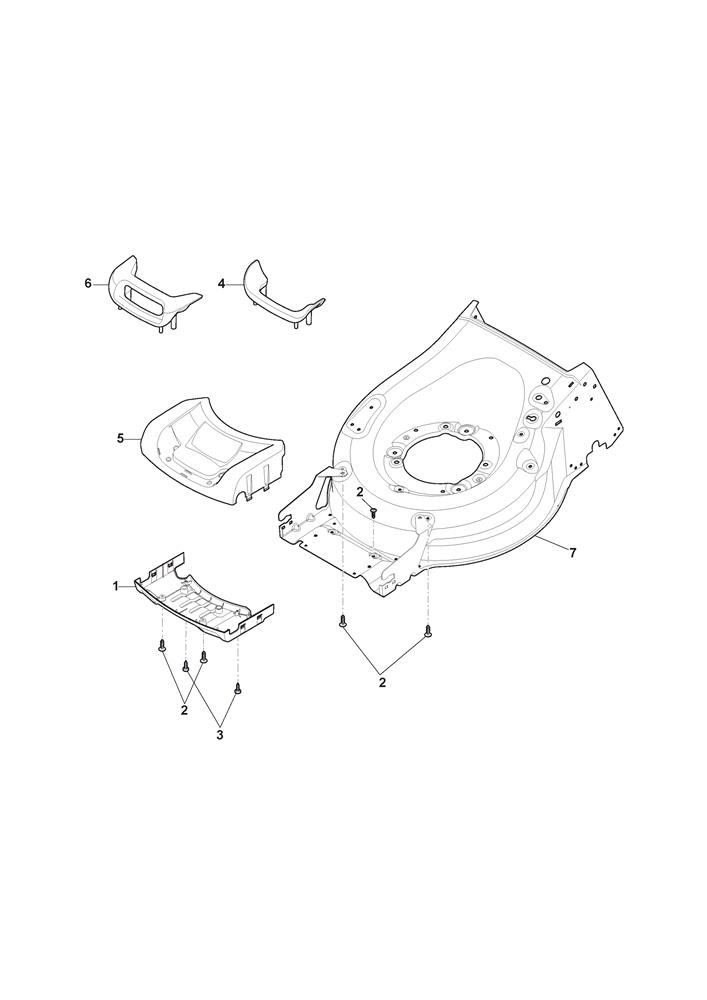

Mask assembly details for Mountfield HW531 PD (294556843/M19) 2019 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322500113/0FRONT DECK COVER [BLACK]£9.39 Add to
002112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
003112728904/0SCREW£1.95 Add to
004322055524/1FRONT PLASTIC INSERT [BLACK]£4.23 Add to
005322226242/0FRONT TOP COVER [DARK RED] MP1 55£17.86 Add to
006322393742/1FRONT HANDLE [BLACK]£7.51 Add to
007381004856/0CHASSIS MP2 554 UL GREY PERLA RAGGR. CTF£225.56 Add to
