Handle, Upper part - quick release

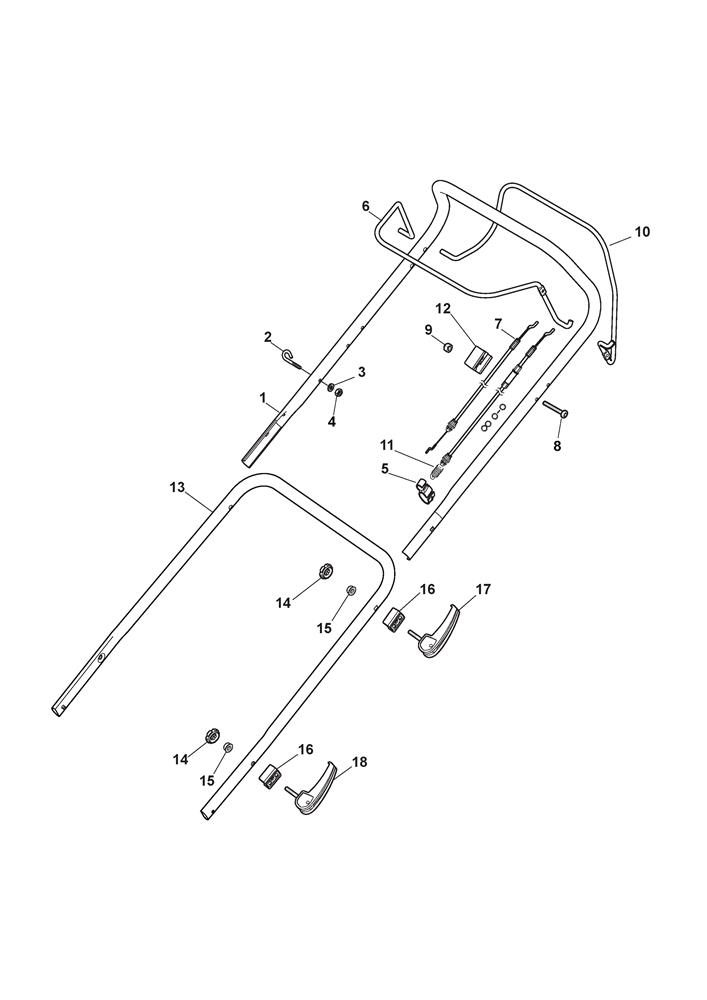

Handle, Upper part - quick release assembly details for Mountfield HW531 PD (294556843/M19) 2019 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	381006739/2	UPPER HANDLE [BLACK]	£39.06	Add to
001	381006745/3	UPPER HANDLE c/w HANDGRIP [BLACK]	£42.53	Add to
002	122430313/0	PULL CORD GUIDE	£4.37	Add to
003	112521330/0	WASHER M6 6.4 x 12 x 1.6	£2.06	Add to
004	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
005	118390020/0	CABLE CLIP	£1.91	Add to
006	181003363/1	ENGINE BRAKE LEVER	£15.41	Add to
007	181030137/0	ENGINE BRAKE CABLE WBE170	£15.59	Add to
008	112727783/0	CROSS-HEAD SCREW M6 x 40	£2.06	Add to
009	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
010	181003364/0	CLUTCH DRIVE LEVER	£14.89	Add to
011	381030104/1	CLUTCH DRIVE CABLE	£22.61	Add to
012	322551685/0	CABLE HOLDER BLOCK	£7.52	Add to
013	381007563/1	LOWER HANDLE [BLACK]	£38.44	Add to
014	381004310/0	HANDLE FIXING ASSEMBLY	£2.32	Add to
015	122131750/0	NUT M8	£2.06	Add to
016	322680016/0	HANDLE FIXING WASHER	£2.06	Add to
017	381103360/0	LOCKING HANDLE LEVER L=70 [BLACK]	£5.48	Add to
018	381103359/1	LOCKING HANDLE LEVER L=62 [BLACK]	£5.07	Add to
