Ejection-Guard

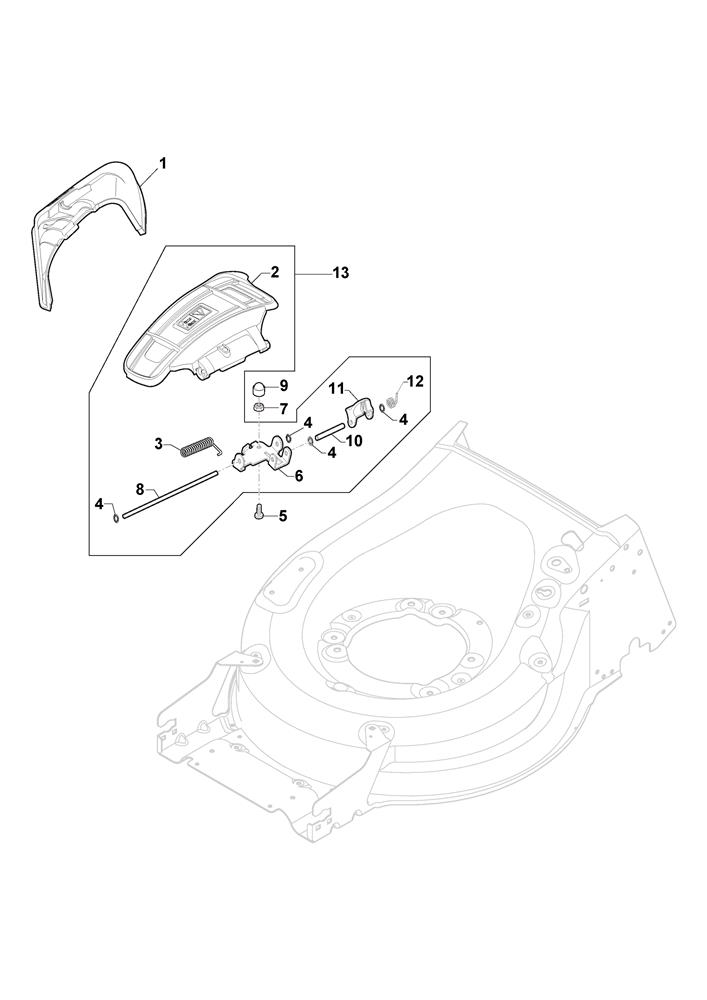

Ejection-Guard assembly details for Mountfield HW531 PD (294556843/M19) 2019 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	322108315/0	SIDE DISCHARGE FLAP [BLACK]	£11.76	Add to
002	381008162/1	SIDE DISCHARGE FLAP ASSEMBLY [BLACK]	£19.36	Add to
003	122450456/1	DEFLECTOR SPRING	£3.69	Add to
004	112604896/0	STARLOCK WASHER D=6	£2.06	Add to
005	112727803/0	SCREW TCB TORX M6 x 14	£2.06	Add to
007	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
008	122517869/1	DEFLECTOR ROD	£4.23	Add to
009	118203853/0	BLACK NUT CAP M6	£3.00	Add to
010	122517876/0	SAFETY PIN	£1.79	Add to
011	322783013/0	SAFETY LOCK	£2.06	Add to
012	122450493/0	SAFETY SPRING	£1.79	Add to
013	381008162/1	SIDE DISCHARGE FLAP ASSEMBLY [BLACK]	£19.36	Add to
