Height Adjusting

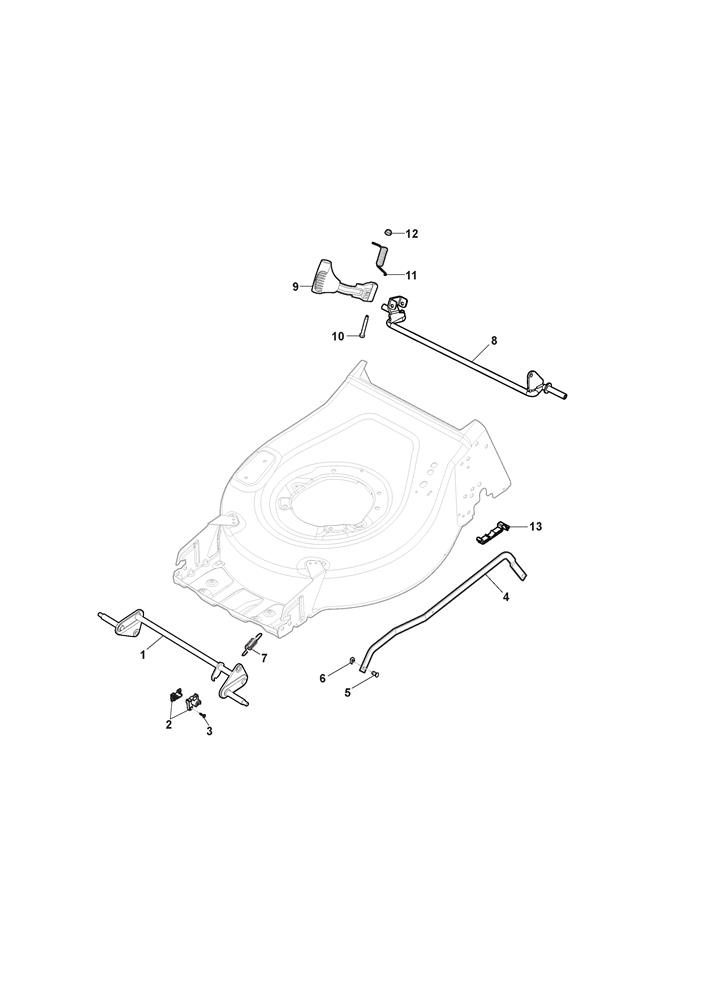

Height Adjusting assembly details for Mountfield HP46 (2L0481048/M19) 2019 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	381302935/1	ASS.FRONT AXLE WHEELS D200 BLACK CP1 48	£31.63	Add to
002	322785305/1	AXLE SUPPORT	£3.00	Add to
003	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
004	322869733/0	HEIGHT ADJUST BAR ZINC 200/200 CP1 48	£17.86	Add to
004	322869733/1	WHEEL CONTROL ROD 200/200 BLACK CP1 48	£16.10	Add to
005	122519823/0	PIN	£2.74	Add to
006	112436050/0	PIN PLATE D=8 (EUROFIX FX70308PH)	£1.83	Add to
007	122450494/0	SPRING	£4.99	Add to
008	381302855/2	REAR WHEELS AXLE D200	£47.97	Add to
009	381003356/0	HEIGHT ADJUST LEVER D=180	£6.55	Add to
009	381003356/1	HEIGHT ADJ.LEVER WHEELS D180 CRUISER	£6.27	Add to
010	122534131/0	PIN	£2.06	Add to
011	122446192/0	SPRING	£2.47	Add to
012	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
013	322785500/0	REAR AXLE SUPPORT CP 1	£2.18	Add to
