Engine - Piston, Crankshaft

Engine - Piston, Crankshaft assembly details for Mountfield HP46 (2L0481048/M19) 2019 model

Parts list

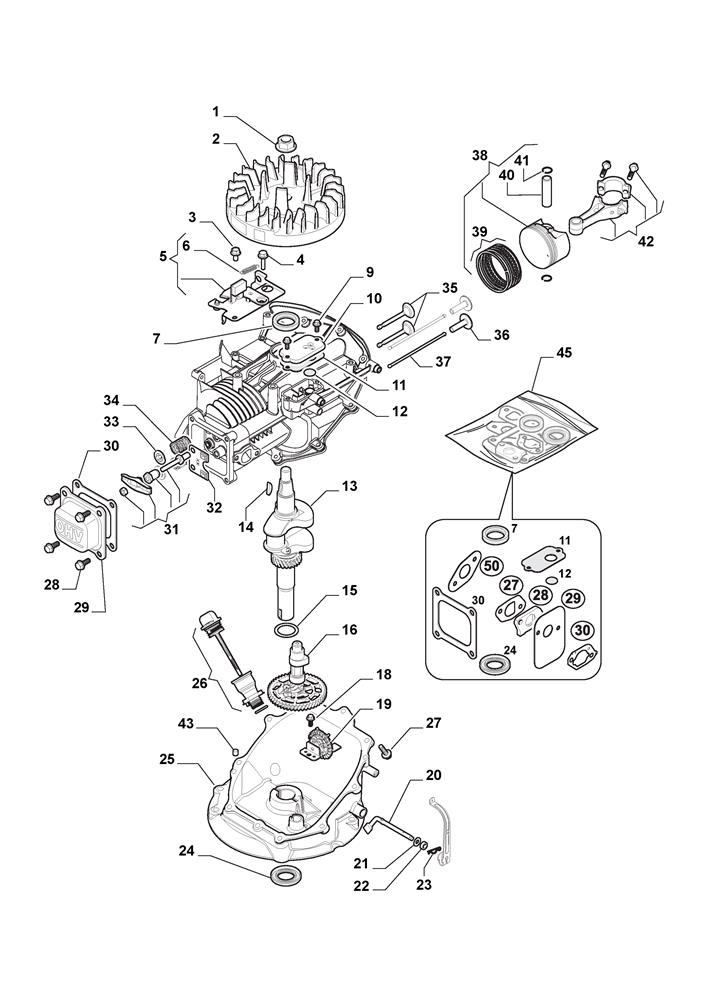

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118550336/0NUT£6.42 Add to
002118550905/0FLYWHEEL£84.77 Add to
005118551483/0FLYWHEEL BRAKE/STOP SWITCH£41.16 Add to
007118550300/0OIL SEAL£7.63 Add to
009112789000/0SCREW TE M5 x 12£2.06 Add to
012118550902/0VALVE£2.06 Add to
013118551488/0CRANKSHAFT£102.80 Add to
014118550288/0WOODRUFF KEY£6.55 Add to
015118550283/0WASHER£3.69 Add to
016118550890/0CAMSHAFT£28.14 Add to
018112789000/0SCREW TE M5 x 12£2.06 Add to
019118550888/0SPEED GOVERNOR£17.04 Add to
020118550936/0GOVERNOR ARM SHAFT£6.95 Add to
024118550379/0OIL SEAL£7.10 Add to
025118551209/0CRANKCASE COVER£86.27 Add to
026118550887/0OIL DIPSTICK£11.32 Add to
028118551276/0HEXAGONAL BOLT£3.15 Add to
029118550891/0HEAD COVER£13.77 Add to
030118550892/0HEAD COVER GASKET£3.69 Add to
031118550893/0ROCKER VALVE ARM SET£13.64 Add to
032118550894/0PLATE£4.82 Add to
035118550910/0INTAKE/EXHAUST VALVE KIT£20.72 Add to
036118550291/0VALVE LIFTER£10.09 Add to
037118550912/0PUSH ROD£7.63 Add to
038118551482/0PISTON ASSEMBLY£57.52 Add to
039118551445/0PISTON RING SET£28.90 Add to
040118550915/0PISTON PIN£5.73 Add to
041118550914/0PISTON PIN CLIP£2.06 Add to
042118551487/0CONNECTING ROD£41.16 Add to
045118550940/0ENGINE GASKET SET£21.40 Add to
