Height Adjusting

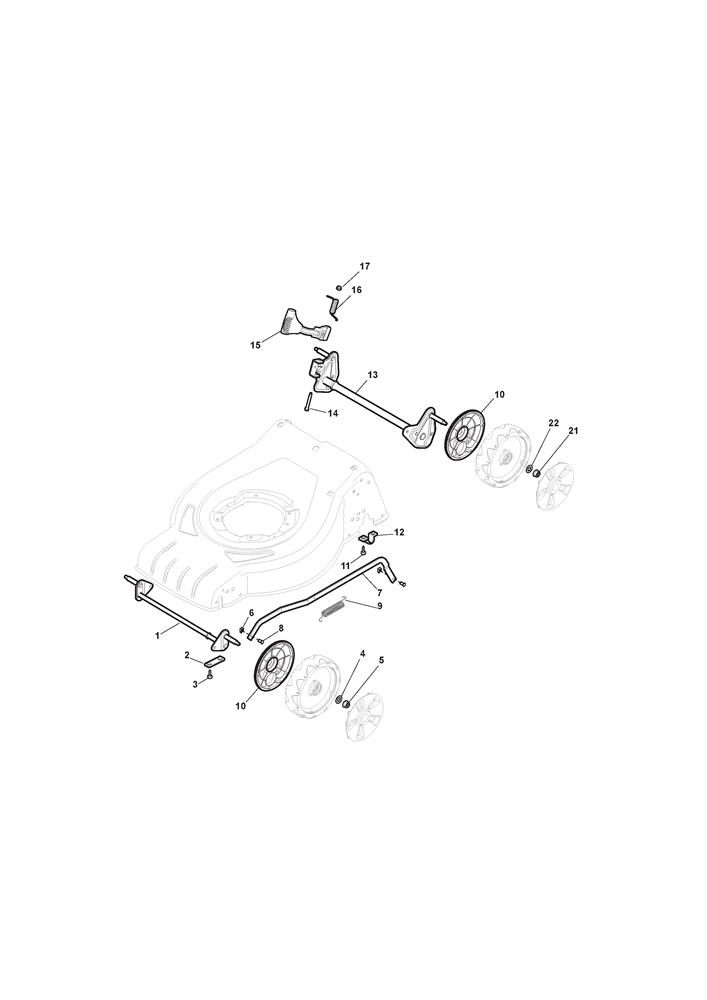

Height Adjusting assembly details for Mountfield HP46 (295491048/M19) 2019 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381302821/0FRONT WHEELS AXLE D=180 CR 48£28.90 Add to
001381302821/1FRONT WHEELS AXLE D=180 CR 48£28.90 Add to
002322545142/0REAR WHEEL AXLE STOP PLATE£2.06 Add to
003112728698/0SELF-TAPPING SCREW K50 x 20£2.06 Add to
004112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
005112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
006112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
007322869671/0WHEEL CONTROL ROD 180/180 CRUISER 48£17.86 Add to
007322869671/1HEIGHT ADJUST ROD CR48£17.20 Add to
008122519820/0PIN£2.47 Add to
009122446193/0SPRING£4.99 Add to
010322600247/0INNER WHEEL COVER D=180£4.66 Add to
011112728698/0SELF-TAPPING SCREW K50 x 20£2.06 Add to
012322545152/0AXLE BRACKET£2.06 Add to
013381302843/0REAR WHEELS AXLE ASS.Y D180 CRUISER TS£35.71 Add to
013381302843/1REAR WHEELS AXLE£33.63 Add to
014122534131/0PIN£2.06 Add to
015381003356/0HEIGHT ADJUST LEVER D=180£6.55 Add to
015381003356/1HEIGHT ADJ.LEVER WHEELS D180 CRUISER£6.27 Add to
016122446192/0SPRING£2.47 Add to
017112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
021112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
022112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
