Deck

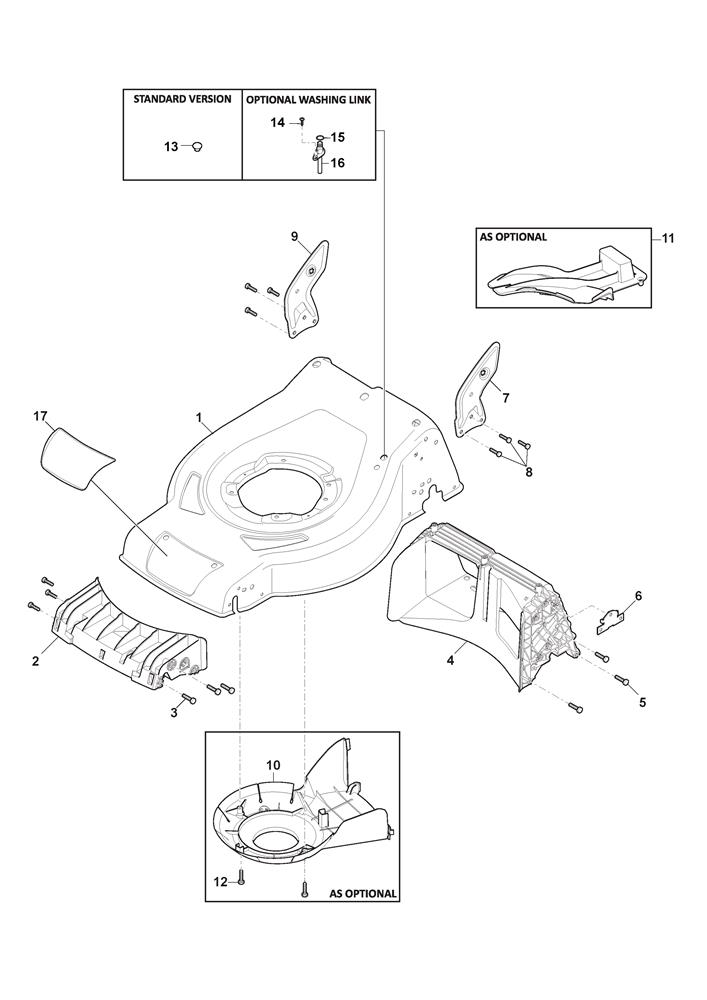

Deck assembly details for Mountfield HP46 (295491048/M19) 2019 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	381004947/0	STEEL DECK CS/CSL48 [BLACK]	£144.51	Add to
002	322108301/2	PLASTIC FRONT BAFFLE [CRUISER 48]	£15.27	Add to
003	112728904/0	SCREW	£1.95	Add to
004	322108392/0	PLASTIC REAR BAFFLE	£20.72	Add to
005	112728904/0	SCREW	£1.95	Add to
006	322545213/0	FIXING PLATE	£2.06	Add to
007	381005139/0	LEFT HANDLE BRACKET	£7.10	Add to
008	112727801/0	SCREW TCB TORX M6 x 20	£2.06	Add to
009	381005137/0	RIGHT HANDLE BRACKET	£6.69	Add to
010	322060242/2	BELT PROTECTION GUARD CR48	£11.59	Add to
011	322140239/1	MULCHING PLUG [CRUISER 48]	£11.87	Add to
012	112728903/0	SCREW	£1.69	Add to
013	322820077/1	PVC DECK CAP	£2.06	Add to
014	112728450/0	SELF-TAP SCREW 4.8 x 19	£2.81	Add to
015	119035000/0	O RING 10.77 x 2.62	£5.46	Add to
016	322034002/0	WASHING CONNECTION	£2.06	Add to
017	322055605/0	FRONT DECK INSERT [CS48] BLACK	£3.55	Add to
