Wheel and Hub Cap

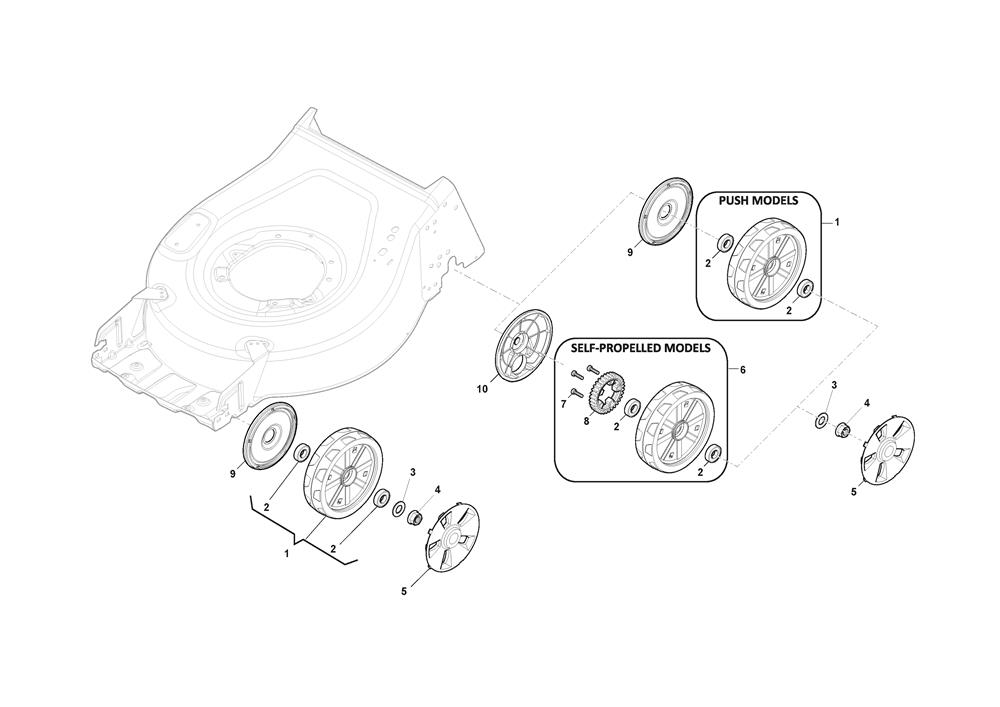

Wheel and Hub Cap assembly details for Mountfield HP 425 (2L0431038/M19) 2019 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	119216035/0	BEARING 6001 2RS (12 x 28 x 8)	£3.83	Add to
003	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
004	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
005	322110687/0	DELTA HUB CAP D=200 [GREY]	£2.87	Add to
006	381007484/2	WHEEL ASS.Y D=200 DELTA W/BEARINGS+CROWN	£16.91	Add to
007	112728706/0	SELF-TAPPING SCREW K40 x 16	£2.06	Add to
009	322600145/0	INNER WHEEL COVER D=200	£2.06	Add to
