Deck

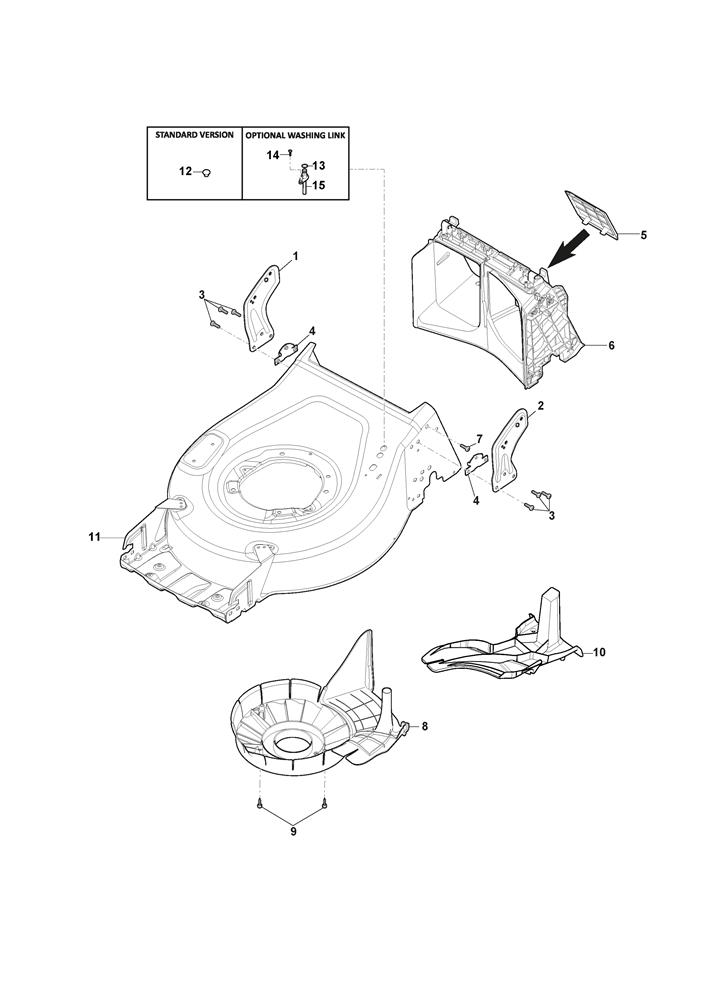

Deck assembly details for Mountfield HP 425 (2L0431038/M19) 2019 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381005195/2R/H HANDLE BRACKET [BLACK] MP1£7.63 Add to
002381005197/2L/H HANDLE BRACKET [BLACK] MP1£7.63 Add to
003112727802/0SCREW TCB TORX M6 x 16£2.06 Add to
004322545213/0FIXING PLATE£2.06 Add to
006322108329/0PLASTIC REAR CONVEYOR CP1£19.61 Add to
007112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
008322060241/1BELT PROTECTION GUARD CR43£8.84 Add to
009112728903/0SCREW£1.69 Add to
010322140249/0MULCHING PLUG CP1 43£12.82 Add to
011381005034/0CHASSIS CP1 43 SD GREY WRINKLED STG+CTF£191.06 Add to
012322820077/1PVC DECK CAP£2.06 Add to
013119035000/0O RING 10.77 x 2.62£5.46 Add to
014112728450/0SELF-TAP SCREW 4.8 x 19£2.81 Add to
015322034002/0WASHING CONNECTION£2.06 Add to
