Blade

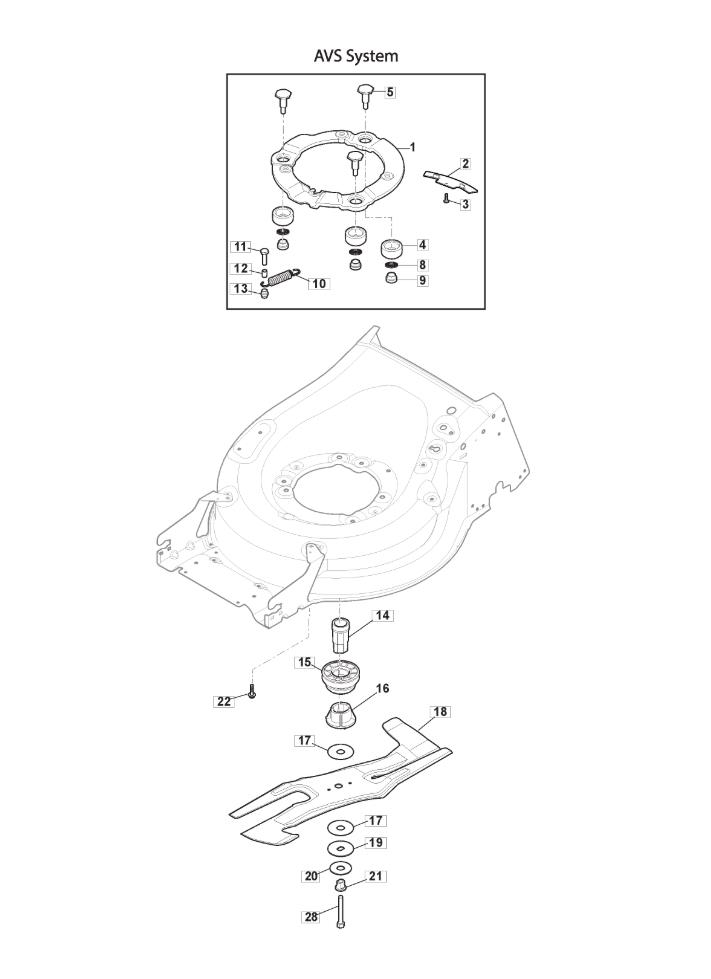

Blade assembly details for Mountfield SP556 BV (294563028/MC) 2018 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	322207226/0	ENGINE MOUNTING PLATE AVS	£33.30	Add to
002	322551536/0	PLATE	£4.10	Add to
003	112728210/0	SCREW TORX M4 x 10	£1.79	Add to
004	322250015/1	AVS RUBBER DAMPER	£7.51	Add to
005	122519816/0	PIN	£10.91	Add to
008	112543002/0	SPRING WASHER M8 C60	£1.58	Add to
009	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
010	122450439/0	TENSION SPRING	£3.69	Add to
011	112791400/0	SCREW TE M6x20 UNI 5739 ACC.4.8	£1.79	Add to
012	122170846/0	SPACER	£3.55	Add to
013	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
014	122785493/0	PULLEY ADAPTOR D=22	£14.05	Add to
015	122601933/0	PULLEY	£60.24	Add to
016	122465656/0	BLADE BOSS D=22	£11.46	Add to
017	322672110/1	FRICTION WASHER 18.3 x 60 x 1.5	£1.91	Add to
018	181004417/0	TWINCLIP BLADE 55	£68.42	Add to
019	322672105/0	BLADE WASHER 60 x 18 x 2	£1.91	Add to
020	112508120/0	SPRING WASHER 18.4 x 50 x 2	£3.72	Add to
021	122041943/0	BUSH	£10.02	Add to
022	112735108/1	TELF-FORM SCREW 3/8" X 1¼" UNC	£2.57	Add to
028	112736820/0	HEX-HEAD SCREW 3/8" x 3"	£2.71	Add to
