Controls

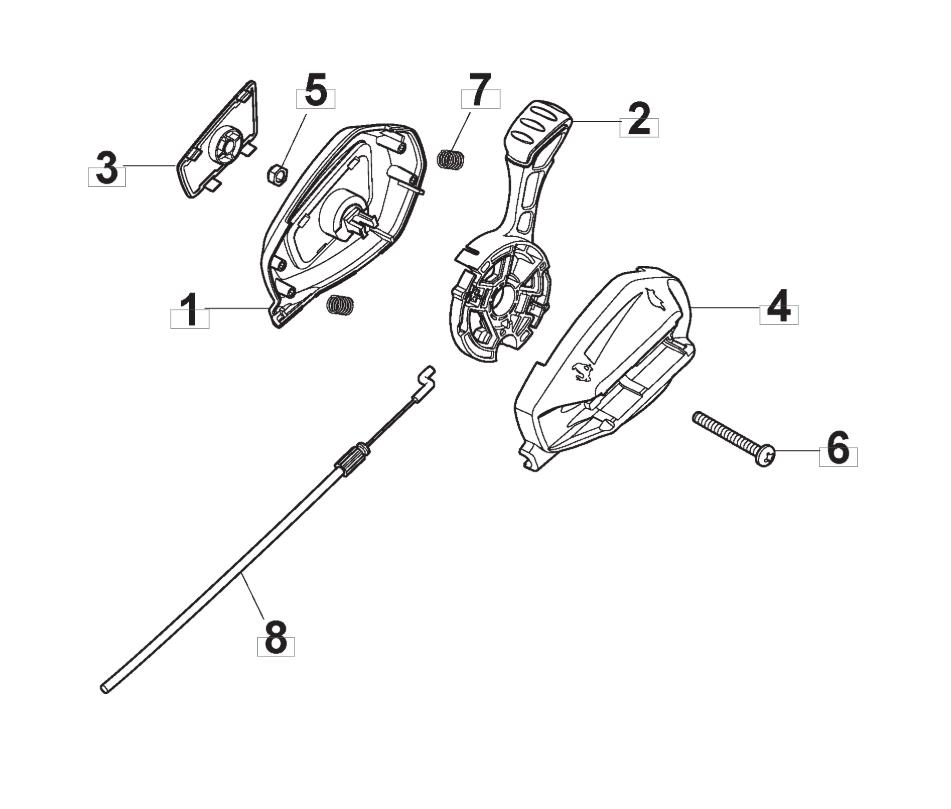

Controls assembly details for Mountfield SP485 HW V (294503038/M16) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322722817/0VARIATOR CABLE HOUSING L/H£9.14 Add to
002381007227/0VARIATOR SPEED LEVER£6.55 Add to
003322820086/0VARIATOR HOUSING CAP£3.15 Add to
004322722816/0VARIATOR CABLE HOUSING R/H£9.41 Add to
005112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
006112727786/0CROSS-HEAD SCREW M6 x 60£2.32 Add to
007122450487/0SPRING£2.06 Add to
008381030117/0VARIATOR CABLE£21.59 Add to
