Deck and Height Adjusting

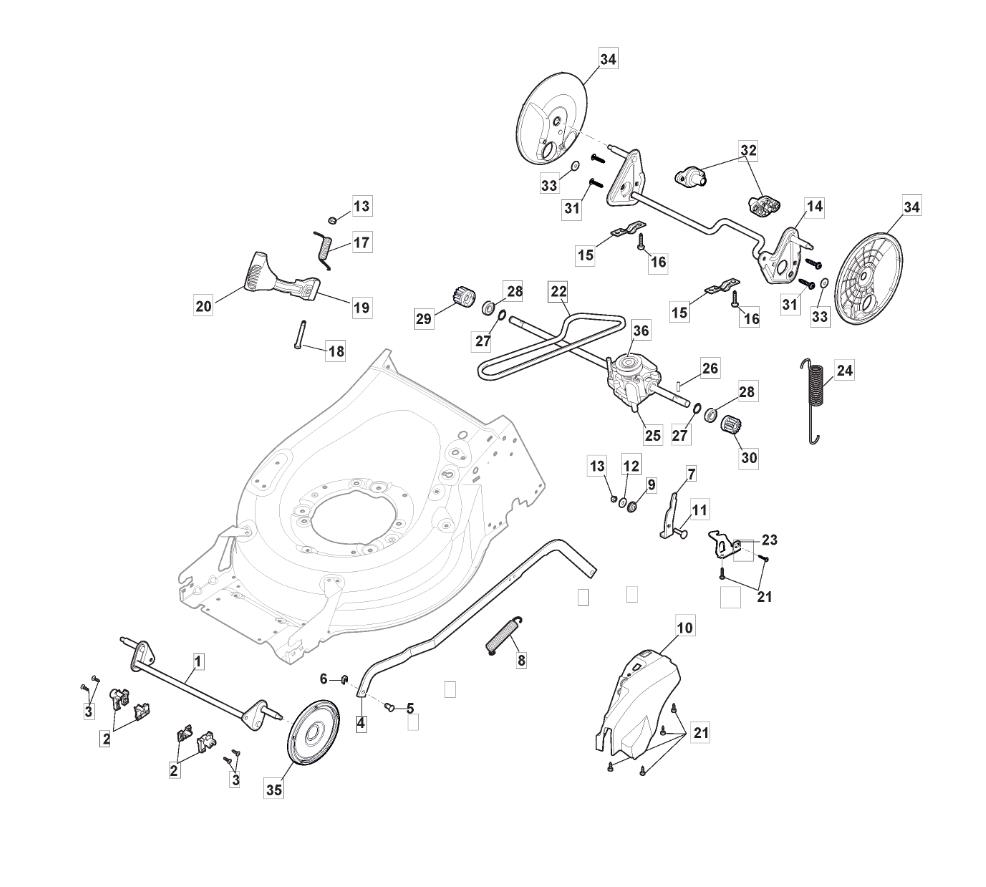

Deck and Height Adjusting assembly details for Mountfield SP535 HW (294556038/M16) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381302915/0FRONT WHEELS AXLE ASS.Y ZNB D200 MP1 55£34.35 Add to
002322785305/1AXLE SUPPORT£3.00 Add to
003112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
004322869693/1WHEEL CONTROL ROD 200/280 ZNB MP1/MP2 55£35.71 Add to
005122519823/0PIN£2.74 Add to
006112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
007322778475/0HEIGHT ADJUST BRACKET£3.15 Add to
008122450480/0SPRING£2.32 Add to
009122517873/0BUSH£3.41 Add to
010322055330/0HEIGHT ADJUST COVER [BLACK]£10.77 Add to
011112815270/0SCREW M6 x 25£2.06 Add to
012112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
013112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
014381302887/0REAR WHEELS AXLE ASS.Y D280 TR MP1 50-55£42.53 Add to
015322545152/0AXLE BRACKET£2.06 Add to
016112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
017122446192/0SPRING£2.47 Add to
018122534131/0PIN£2.06 Add to
019381003399/0REAR HEIGHT ADJ.LEVER ASS.Y ZNB D280 NT£7.10 Add to
020322394506/0HEIGHT ADJUST KNOB£2.06 Add to
021112728699/0SELF-TAPPING SCREW K60 x 22£2.06 Add to
022135063902/1TRAPEZOIDAL BELT Z 29.5 LP=772£12.24 Add to
023322778473/0STOP BRACKET£2.87 Add to
024122450478/0SPRING£9.28 Add to
025181003115/0GEARBOX [BLACK]£129.74 Add to
026122753000/0PIN D=5.2 x 25.65£2.06 Add to
027112608600/0CIRCLIP D=12£2.08 Add to
028119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
029122570133/0RIGHT PINION Z12 GEAR£7.92 Add to
030122570134/0LEFT PINION Z12 GEAR£7.92 Add to
031112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
032322042063/1AXLE BUSH£2.78 Add to
033112521371/0WASHER M12 13 x 20 x 2£2.06 Add to
034322600208/0INNER WHEEL COVER D=280£4.78 Add to
035322600145/0INNER WHEEL COVER D=200£2.06 Add to
036122601909/0PULLEY£6.01 Add to
