Blade

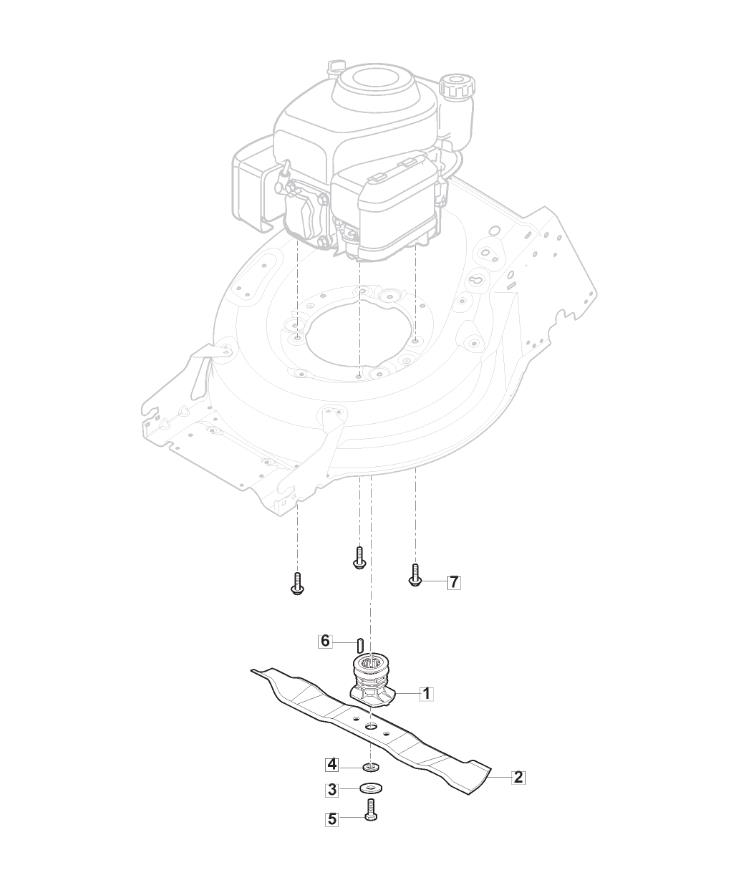

Blade assembly details for Mountfield SP535 HW (294556038/M16) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001122465608/3BLADE BOSS D=25mm£11.34 Add to
002181004409/0MULCHING BLADE 55 MP1£24.89 Add to
003112508128/0SPRING WASHER 28 x 10 x 2,5£1.79 Add to
004322680021/0FLAT ZINC WASHER 9.8 x 34 x 3£2.02 Add to
005112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
006112139150/0WOODRUFF KEY D=25mm£2.14 Add to
007112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
