Transmission

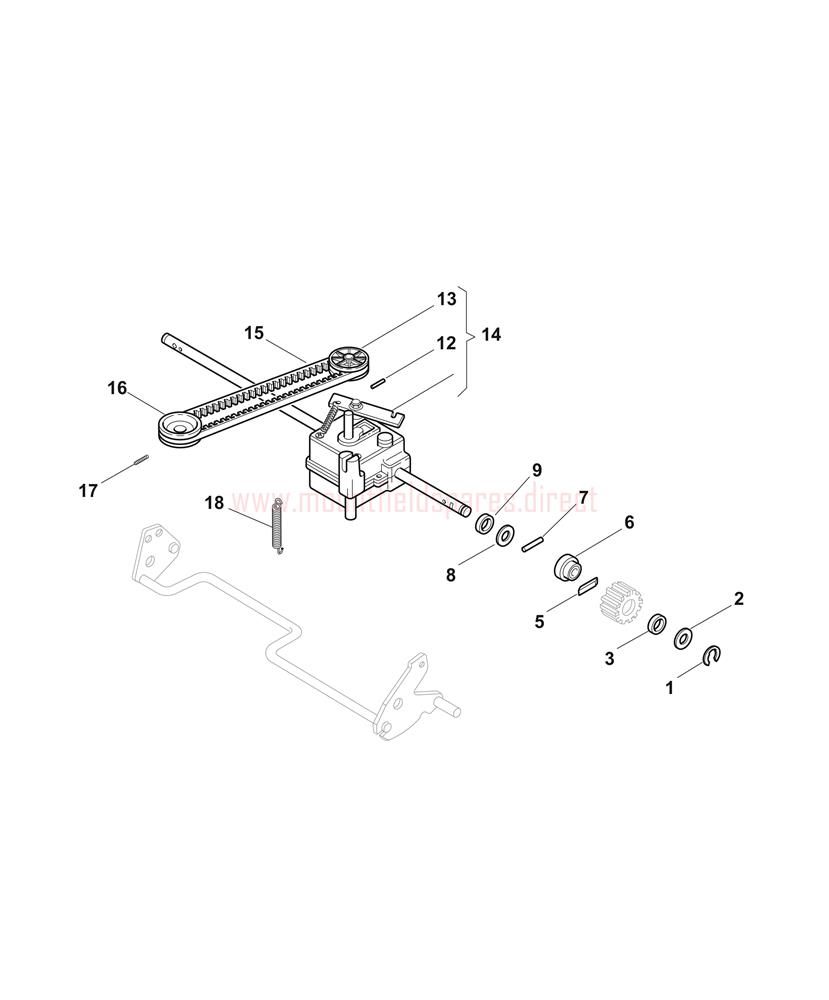

Transmission assembly details for Mountfield SP555 292552238-BQ 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112000957/0CIRCLIP D=10£2.46 Add to
002112520032/0WASHER 12 x 18 x 1£2.46 Add to
003322160520/0DUST COVER£2.46 Add to
005122076645/0DRIVE KEY 4 x 8 x 15£2.46 Add to
006322170630/1GEARBOX PINION SPACER£5.22 Add to
007122753002/0CYLINDRICAL PIN D=5 x 25£2.46 Add to
009119035152/0SEAL RING 12 x 18 x 4£4.98 Add to
012112620310/0PIN£2.46 Add to
013122601913/0GEARBOX PULLEY D=60£12.48 Add to
014181003085/0GEARBOX [BLACK]£115.20 Add to
015135064383/0TRAPEZOIDAL BELT XPZ LP=837£13.98 Add to
016122601921/0DRIVE ENGINE PULLEY D=25£17.70 Add to
017112714312/0DOWEL PIN M6 x 12£2.46 Add to
018122450434/0TENSION SPRING£5.94 Add to
