Deck And Height Adjusting

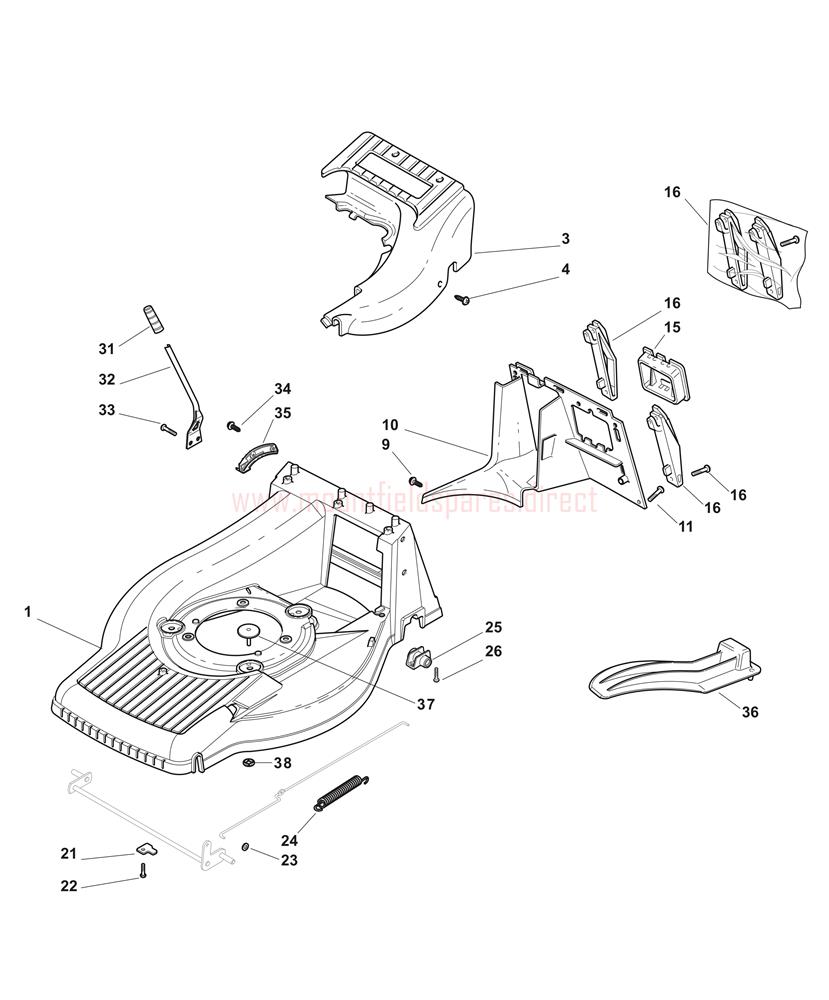

Deck And Height Adjusting assembly details for Mountfield SP555 292552238-BQ 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

001381004738/0CHASSIS GREY TURBO 55£528.07 Add to
003322060155/1DECK COVER [RED]£20.17 Add to
004112728300/0SCREW PT TORX K50 x 22£2.84 Add to
010322108277/0PLASTIC REAR BAFFLE£41.58 Add to
011112735664/0SCREW M6 x 16£1.65 Add to
015322109531/0BATTERY COVER£3.81 Add to
016381008658/1ACCESSORY BAG-GRASSCATCHER£18.16 Add to
021322545160/0FRONT AXLE PLATE£3.95 Add to
023112604898/0STARLOCK WASHER D=7£1.65 Add to
024122446181/0SPRING£7.55 Add to
025322785153/0GEARBOX SUPPORT BRACKET£16.29 Add to
031322399808/0HEIGHT ADJUST KNOB£3.60 Add to
0321111-2816-01HEIGHT ADJUST LEVER£5.75 Add to
033112735661/0SCREW TCB TORX M6 x 10£2.91 Add to
035322735563/0HEIGHT ADJUST QUADRANT£15.73 Add to
036322140232/0MULCHING PLUG [TURBO 55]£39.15 Add to
037322820057/0DECK CLOSING CAP [BLACK]£2.84 Add to
038112604899/0STARLOCK WASHER D=8£2.84 Add to
