Chassis-Handle, Upper Part

Chassis-Handle, Upper Part assembly details for Mountfield SP505R 292505038 2015 model

Parts list

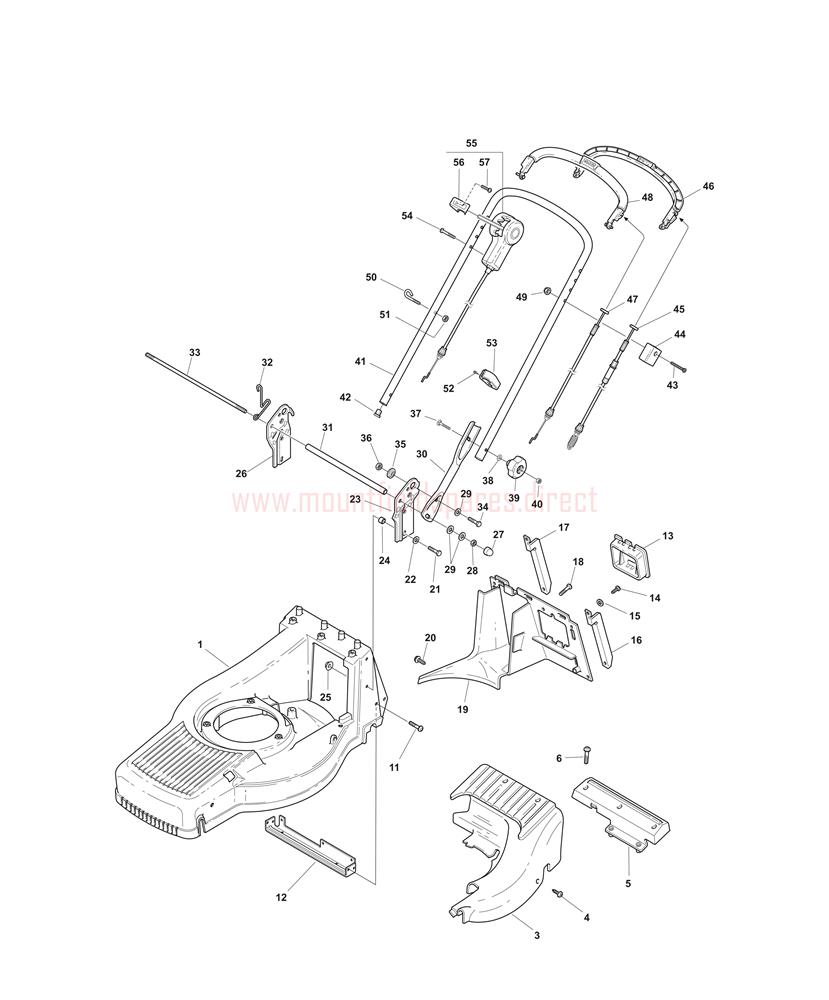

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381002659/0CHASSIS ROLLER RED TU50£345.36 Add to
003322060153/1DECK COVER TU50 [RED]£18.06 Add to
004112728300/0SCREW PT TORX K50 x 22£2.46 Add to
005322785164/0DEFLECTOR SUPPORT [BLACK]£5.46 Add to
006112735664/0SCREW M6 x 16£2.46 Add to
011112735592/0SELF-TAP SCREW M6 x 20£2.46 Add to
012322608521/0DECK STRUT£27.19 Add to
013322109531/0BATTERY COVER£3.30 Add to
014112728124/0SELF-TAP SCREW TCB TORX 4.2 x 16£2.46 Add to
015112523040/0WASHER M6 6.6 x 18 x 1.6£2.46 Add to
016322775183/0LEFT BRACKET£18.30 Add to
017322775185/0RIGHT BRACKET£18.90 Add to
019322108278/0PLASTIC REAR BAFFLE£33.06 Add to
021112793102/0HEX-HEAD SCREW TE M8 x 20£2.46 Add to
022112521350/0WASHER M8 8.4 x 16 x 1.6£2.46 Add to
023322778411/0LEFT HANDLE BRACKET£8.80 Add to
024122041959/0BUSH£5.08 Add to
025112293201/0HEXAGON NUT M8£2.46 Add to
026322778413/0RIGHT HANDLE BRACKET£6.61 Add to
027118203854/0PROTECTION CAP [BLACK]£2.46 Add to
028112293200/0NUT£2.46 Add to
029112523060/0WASHER M8 8.4 x 24 x 2£2.46 Add to
030381006614/0LOWER HANDLE [BLACK]£34.44 Add to
031322869711/0SPACER TUBE£8.51 Add to
032122430312/0LOWER PULL CORD GUIDE£6.36 Add to
033122517702/1HANDLE ROD£7.26 Add to
034112793301/0HEX-HEAD SCREW M8 x 25£2.46 Add to
035322041955/0METAL HANDLE BUSH£2.46 Add to
037112819110/0CARRIAGE BOLT M8 x 50£2.46 Add to
038122680006/1PLASTIC WASHER£2.46 Add to
039322399804/1HANDWHEEL w/o NUT M8 [BLACK]£4.38 Add to
041381006619/1UPPER HANDLE [BLACK]£42.84 Add to
042118566110/0HANDLE CAP D=22 [BLACK]£2.46 Add to
043112727786/0CROSS-HEAD SCREW M6 x 60£2.76 Add to
044322551640/0CABLE HOLDER BLOCK£7.62 Add to
045381000697/0CLUTCH DRIVE CABLE£18.18 Add to
046381003297/1DRIVE CONTROL LEVER£20.34 Add to
047181030061/0ENGINE BRAKE CABLE L=1282£12.30 Add to
048381003298/1BRAKE CONTROL LEVER£27.36 Add to
049112154510/0LOW SELF-LOCKING NUT M6£2.46 Add to
050122430313/0PULL CORD GUIDE£4.44 Add to
051112292100/0HEXAGON NUT M6£2.46 Add to
052112728691/0SELF-TAP SCREW WN1411 KA40 x 16£2.46 Add to
053322192001/0CABLE CLAMP£2.46 Add to
054112728702/0SELF-TAP SCREW WN1451 K50 X 40£3.60 Add to
055381007097/04 SPEED CABLE ASSEMBLY£35.52 Add to
056322399809/04 SPEED CABLE KNOB£2.46 Add to
