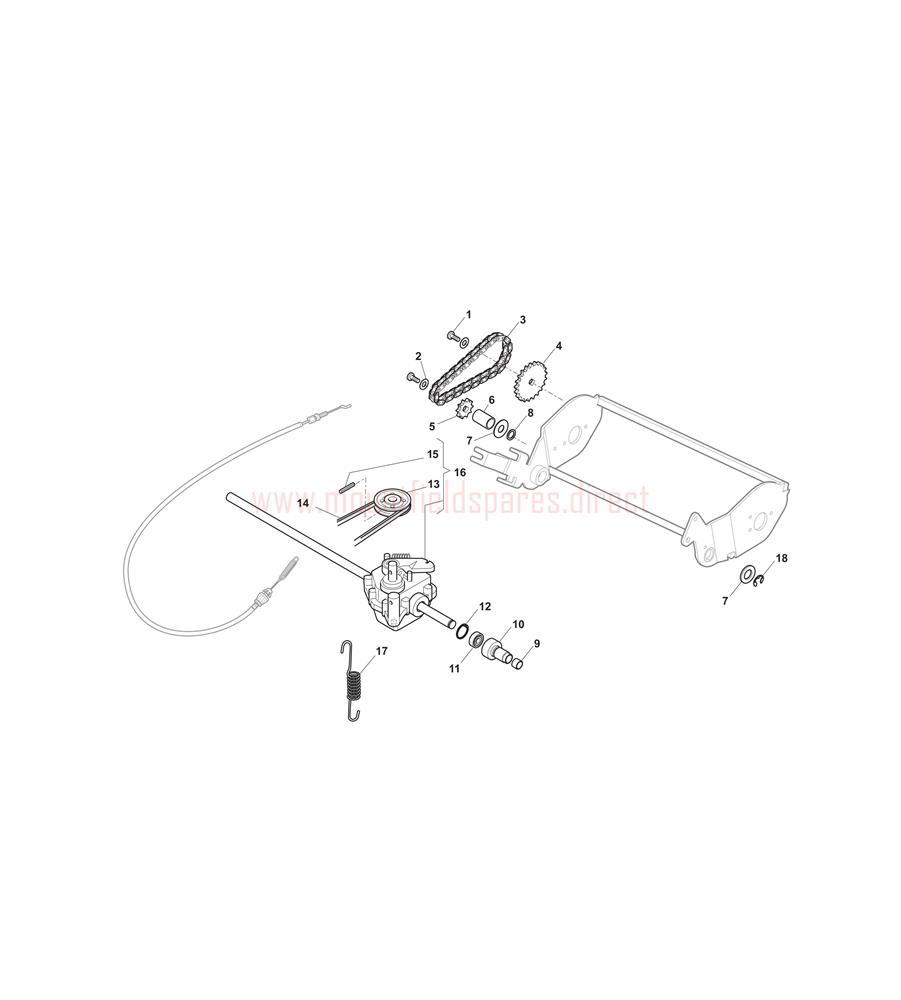

Roller assembly details for Mountfield SP465R 299489038 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

001112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
002112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
0031111-3562-01ROLLER CHAIN (RIVETED)£20.45 Add to
0041111-3424-01SPROCKET 21T£18.28 Add to
0051111-3423-01SPROCKET 10T£15.13 Add to
006122170970/0SPROCKET SPACER£2.47 Add to
007322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£1.91 Add to
008321660100/0THRUST WASHER 13 X 22 X 0.5£2.32 Add to
009322038404/0DRIVE AXLE BUSH£2.06 Add to
010322785126/0BEARING SUPPORT£12.00 Add to
011119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
012112610095/0CIRCLIP D=28£2.06 Add to
013122601909/0PULLEY£6.01 Add to
014135063800/0TRAPEZOIDAL BELT Z 27 LP=710(BRONZE GEAR)£11.01 Add to
015112645705/0ROLL PIN D=5 x 32£2.02 Add to
016181003077/1GEARBOX GT VE2002 EVO WBH STEEL ROLLER£102.01 Add to
017125430220/0SPRING£4.52 Add to
018112000957/0CIRCLIP D=10£2.59 Add to
