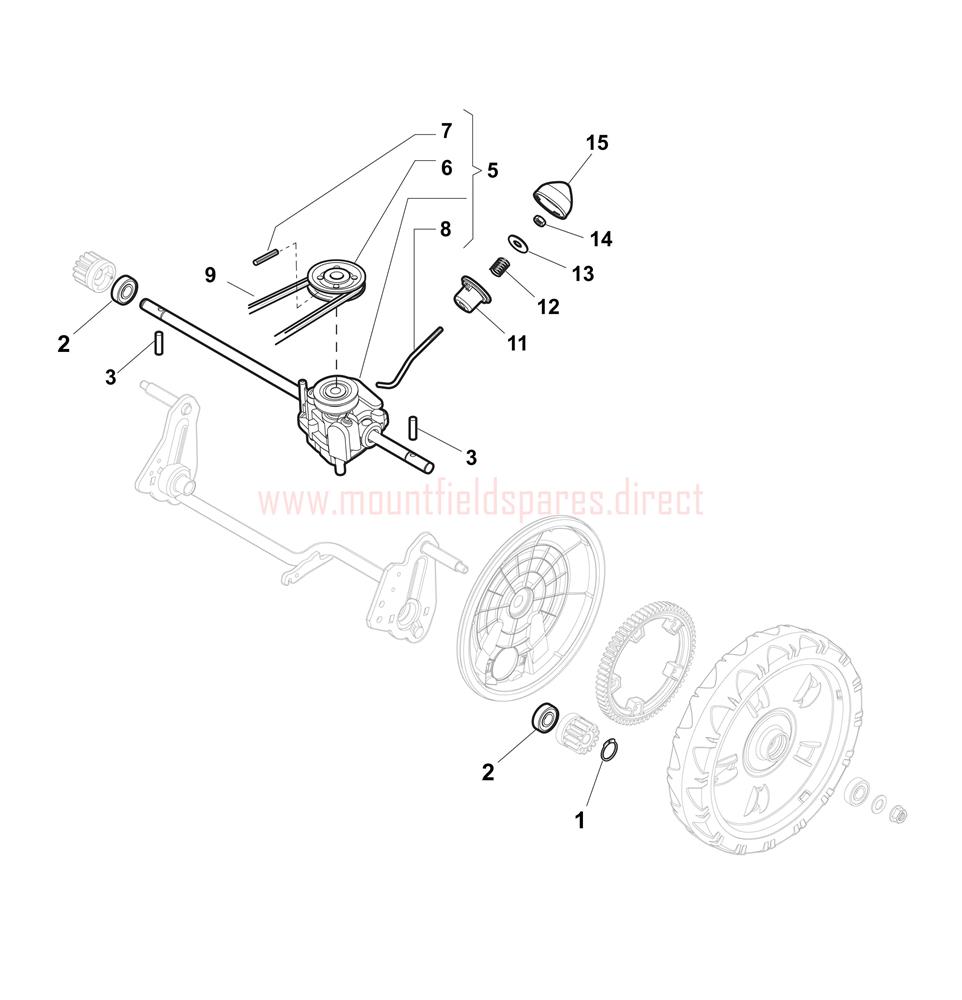

Transmission assembly details for Mountfield SP465 299482338 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

001112608600/0CIRCLIP D=12£2.08 Add to
002119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
003122753000/0PIN D=5.2 x 25.65£2.06 Add to
005181003076/1GEARBOX GT VE2002 EVO£124.29 Add to
006122601909/0PULLEY£6.01 Add to
007112645700/0PIN£2.06 Add to
008122033283/0GEARBOX ADJUSTING ROD£5.05 Add to
009135063800/0TRAPEZOIDAL BELT Z 27 LP=710(BRONZE GEAR)£11.01 Add to
011122041957/1SPRING GUIDE BUSH£2.06 Add to
012122450063/0SPRING£2.06 Add to
013322680009/0FLAT WASHER 6.5 x 32 x 4 WZ£1.91 Add to
014112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
015122110230/0HUB COVER£2.06 Add to
