Deck And Height Adjusting

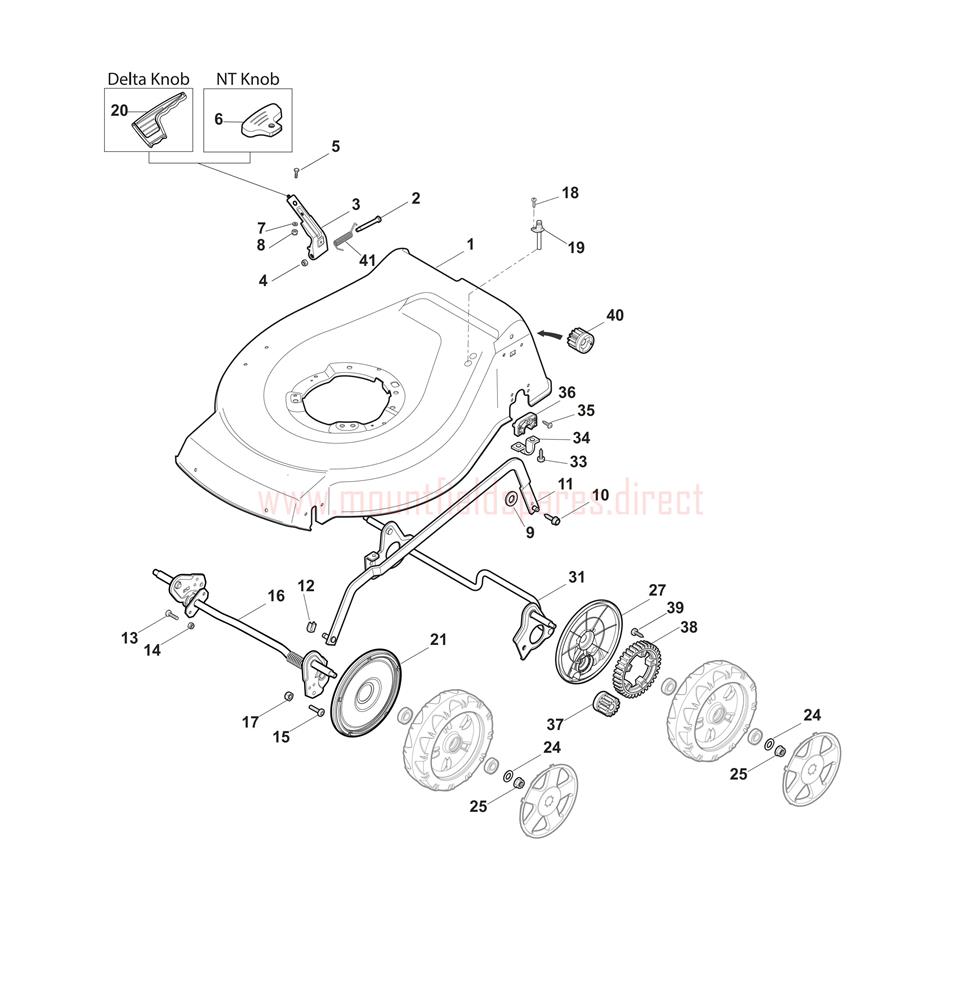

Deck And Height Adjusting assembly details for Mountfield SP465 299482338 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

001381004741/0DECK GREY NT48£184.24 Add to
002122534131/0PIN£2.06 Add to
003322322851/0HEIGHT ADJUST LEVER 180/200£7.10 Add to
004112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
005112788512/0SCREW M4 x 12£2.06 Add to
006322394503/0HEIGHT ADJUST KNOB£2.18 Add to
007112521310/0WASHER M4 4.3 x 9 x 0.8£1.79 Add to
008112150000/0SELF-LOCKING NUT M4£1.79 Add to
009112369500/0SPRING WASHER D=8£1.79 Add to
010122943013/0SCREW 1/4 WITH COLLAR£5.19 Add to
011381002029/0HEIGHT ADJUST TIE BAR£39.29 Add to
012112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
013112727803/0SCREW TCB TORX M6 x 14£2.06 Add to
015112727801/0SCREW TCB TORX M6 x 20£2.06 Add to
016381302805/1FRONT WHEELS AXLE NTD48£42.53 Add to
018112728450/0SELF-TAP SCREW 4.8 x 19£2.81 Add to
019322034002/0WASHING CONNECTION£2.06 Add to
020322394522/0HEIGHT ADJUST KNOB-YELLOW - NLA£8.73 Add to
021322600145/0INNER WHEEL COVER D=200£2.06 Add to
024112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
025112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
027322600207/0INNER WHEEL COVER D=200£2.87 Add to
031381302827/0REAR WHEELS AXLE£59.61 Add to
033112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
034322545152/0AXLE BRACKET£2.06 Add to
036322785304/1REAR AXLE SUPPORT£2.74 Add to
037122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.75 Add to
038322120114/0PLASTIC DRIVE GEAR D=200£7.23 Add to
039112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
040122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.52 Add to
041122446192/0SPRING£2.47 Add to
