Deck And Height Adjusting

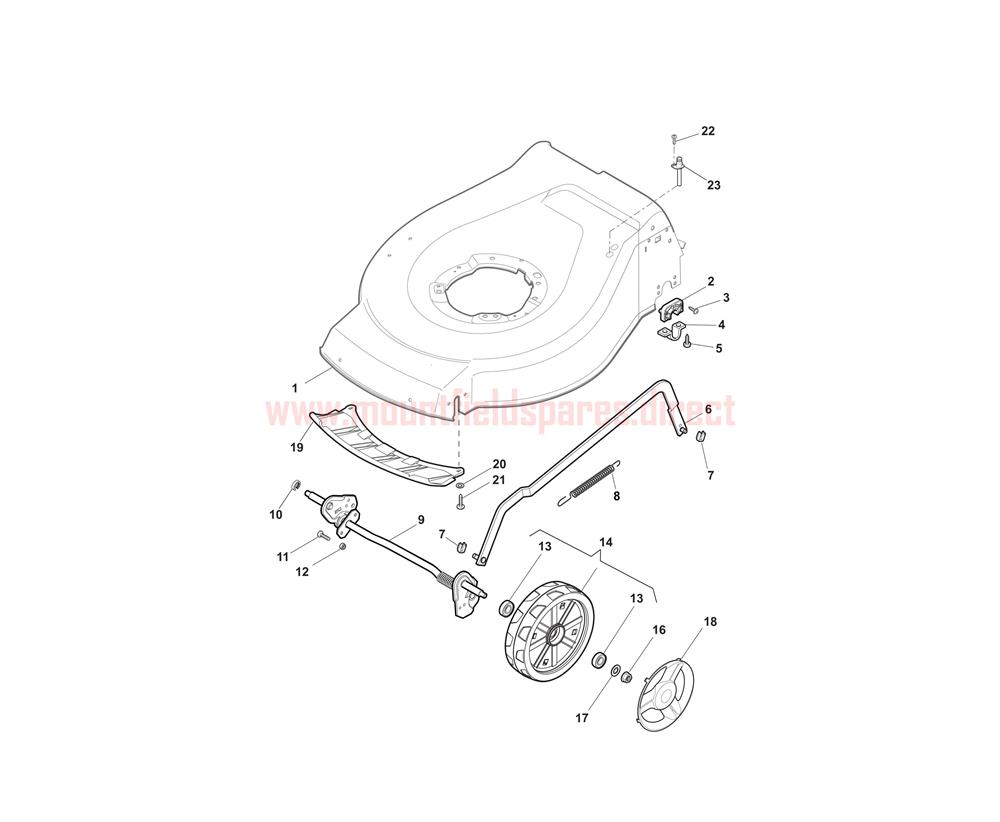

Deck And Height Adjusting assembly details for Mountfield SP42R 299439143-BQ 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381004546/0STEEL DECK CS53 [RED]£95.22 Add to
001381004549/0STEEL DECK CS53 BLACK£118.88 Add to
002322108308/0PLASTIC FRONT BAFFLE£13.76 Add to
003112728699/0SELF-TAPPING SCREW K60 x 22£1.96 Add to
004322108392/0PLASTIC REAR BAFFLE£19.73 Add to
006322545213/0FIXING PLATE£1.96 Add to
007381005167/0L/H HANDLE BRACKET [CRUISER 53] BLACK£8.19 Add to
008112727801/0SCREW TCB TORX M6 x 20£1.96 Add to
009381005165/0R/H HANDLE BRACKET [CRUISER 53] BLACK£8.19 Add to
010322060250/0BELT PROTECTION GUARD CR53£10.06 Add to
011322140244/0MULCHING PLUG [CRUISER 53]£16.73 Add to
012112728903/0SCREW£1.61 Add to
