Height Adjusting

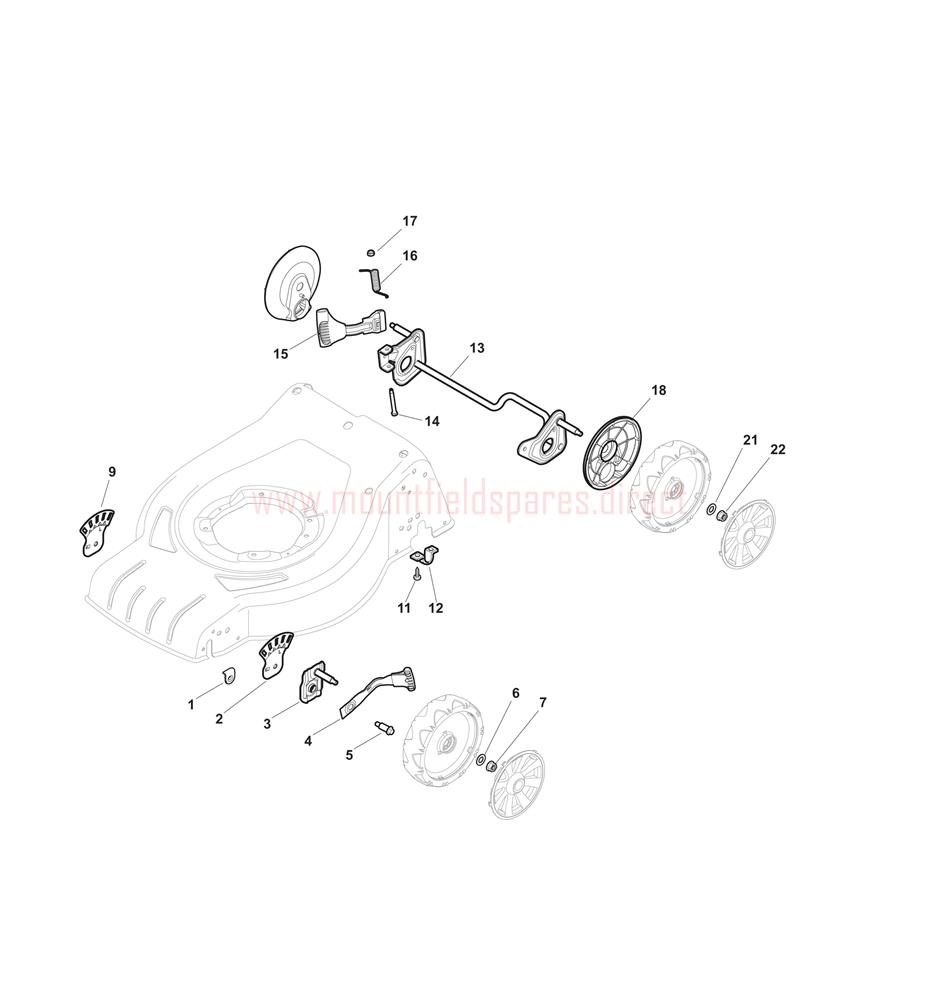

Height Adjusting assembly details for Mountfield SP425 295432038 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322545189/0HANDLE FIXING PLATE£2.46 Add to
003381005141/0WHEEL STUB AXLE£9.44 Add to
004381003354/0HEIGHT ADJUST LEVER£6.00 Add to
005122519811/0WHEEL BOLT£2.46 Add to
006112521350/0WASHER M8 8.4 x 16 x 1.6£2.46 Add to
007112155000/0LOW SELF-LOCKING NUT M8£2.46 Add to
009322735595/1HEIGHT ADJUST QUADRANT R/H£3.48 Add to
011112728698/0SELF-TAPPING SCREW K50 x 20£2.46 Add to
012322545152/0AXLE BRACKET£2.46 Add to
013381302819/0REAR WHEEL AXLE£26.16 Add to
014122534131/0PIN£2.46 Add to
015381003356/0HEIGHT ADJUST LEVER£6.06 Add to
016122446192/0SPRING£2.82 Add to
017112154510/0LOW SELF-LOCKING NUT M6£2.46 Add to
018322600204/0INNER WHEEL COVER D=180£3.84 Add to
