Blade

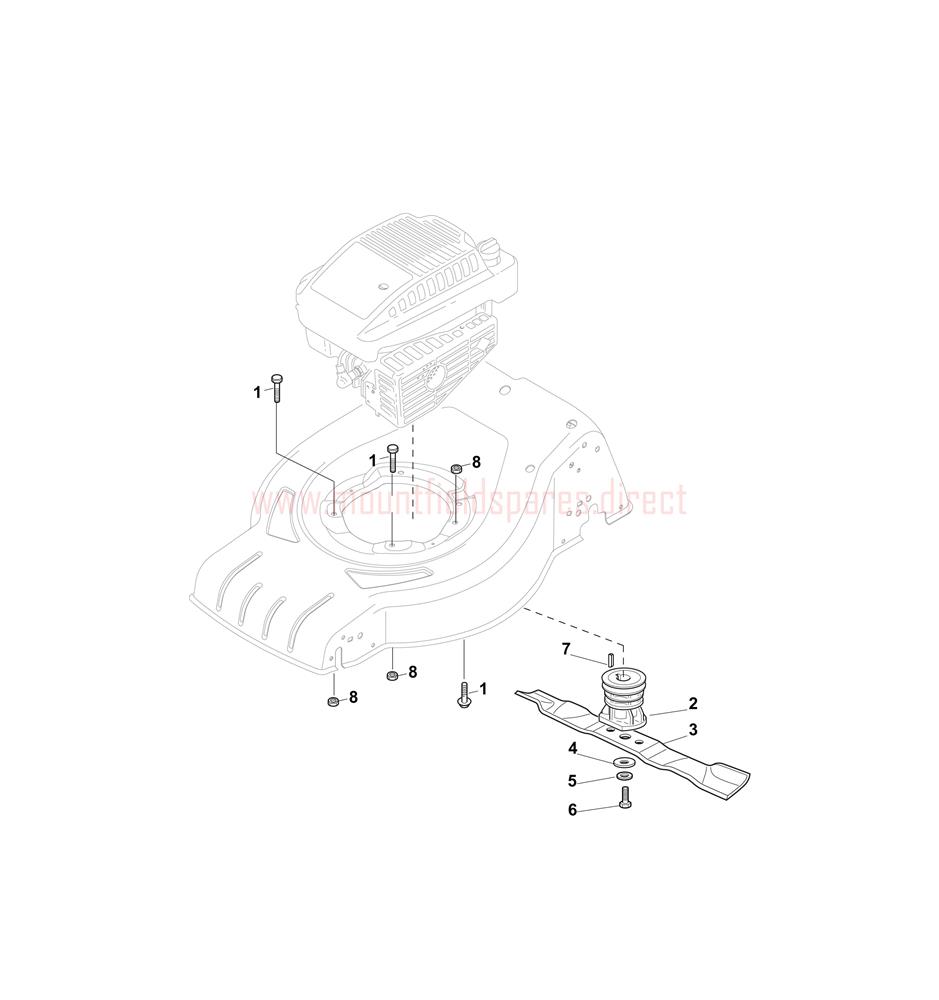

Blade assembly details for Mountfield SP425 295432038 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112691115/0HEX-HEAD SCREW M8 x 40£2.46 Add to
002122465608/2BLADE BOSS D=25mm£9.36 Add to
003181004341/3BLADE 41cm£12.54 Add to
004122160400/0SPRING WASHER 50 x 2 x 10.2£2.52 Add to
005112523080/0WASHER M10 11 x 30 x 2.5£2.46 Add to
006112735698/0HEX-HEAD SCREW 3/8" x 2"£2.46 Add to
007112139150/0WOODRUFF KEY D=25mm£2.58 Add to
008112154210/0SELF-LOCK WINGED NUT M8£2.46 Add to
