Height Adjusting

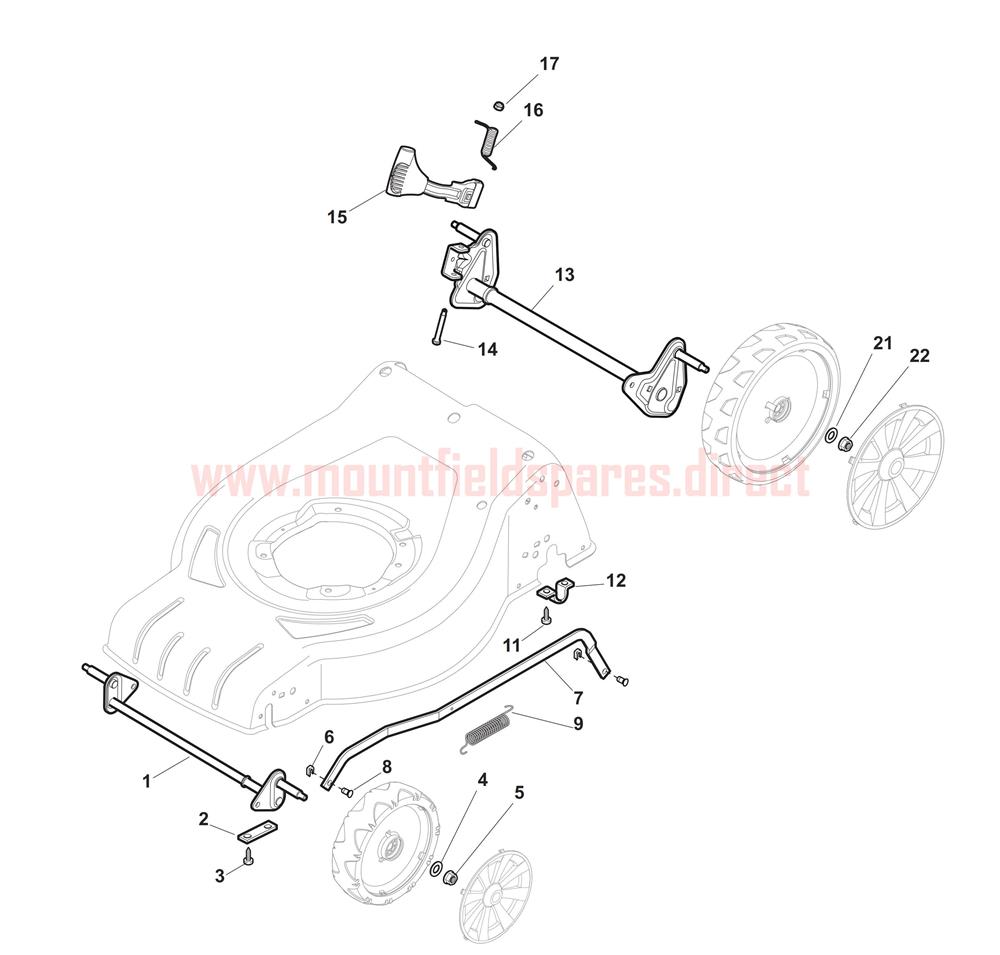

Height Adjusting assembly details for Mountfield S461 HP 295485043 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 381302821/0 FRONT WHEELS AXLE £15.60 Add to
002 322545142/0 AXLE PLATE £3.60 Add to
003 112728698/0 SELF-TAPPING SCREW K50 X 20 £3.60 Add to
004 112521350/0 WASHER M8 8.4 X 16 X 1.6 £3.60 Add to
005 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
006 112436051/0 PIN PLATE D=8 £3.60 Add to
007 322869673/0 HEIGHT ADJUST TIE BAR £10.81 Add to
008 122519820/0 PIN £3.60 Add to
009 122446193/0 SPRING £5.20 Add to
012 322545152/0 AXLE BRACKET £3.60 Add to
013 381302815/0 REAR WHEEL AXLE £24.83 Add to
014 122534131/0 PIN £3.60 Add to
015 381003357/0 REAR HEIGHT ADJUST LEVER £5.59 Add to
016 122446192/0 SPRING £5.04 Add to
017 112154510/0 LOW SELF-LOCKING NUT M6 £3.60 Add to
