Roller

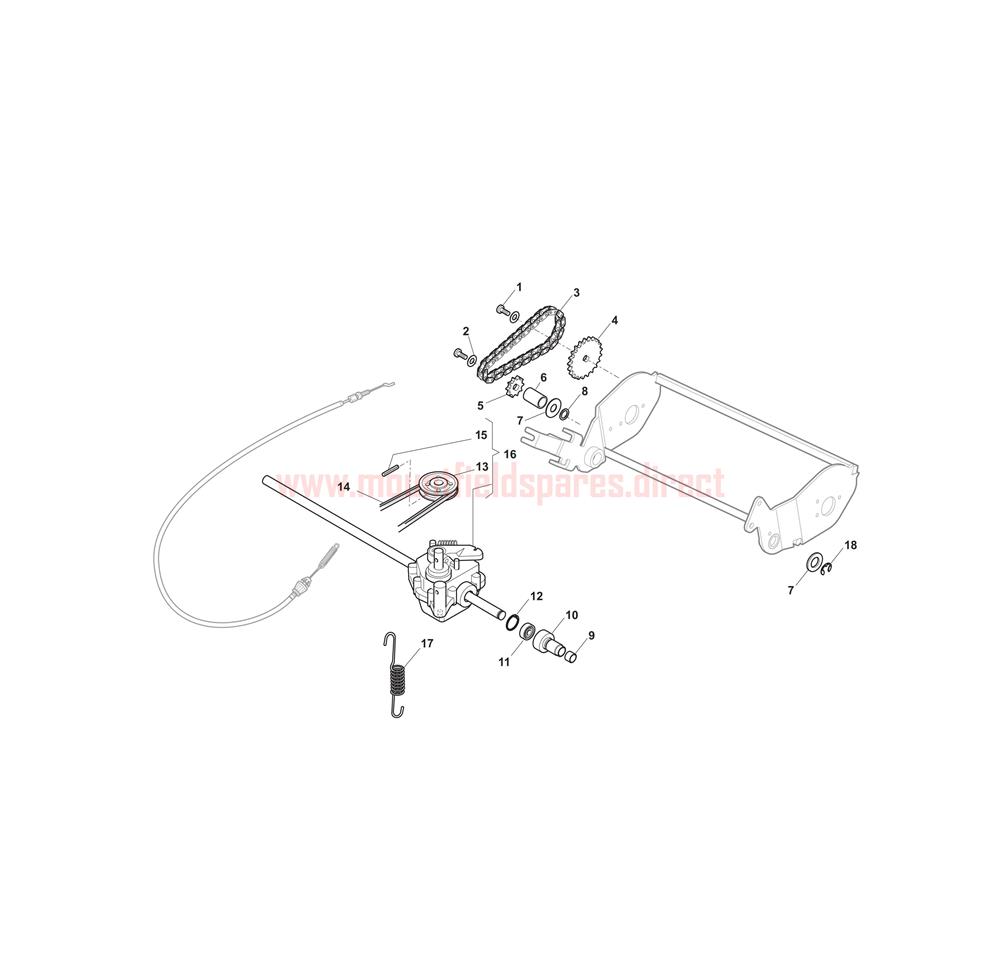

Roller assembly details for Mountfield S421R PD 299439043 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 112735662/1 SCREW TCB TORX M6 X 12 £3.60 Add to
002 112523040/0 WASHER M6 6.6 X 18 X 1.6 £3.60 Add to
003 1111-3562-01 ROLLER CHAIN £28.51 Add to
004 122120106/0 21T SPROCKET GEAR £18.41 Add to
005 122120107/0 10T SPROCKET GEAR £15.67 Add to
006 122170970/0 SPROCKET SPACER £5.53 Add to
007 322672151/0 ANTI-FRICTION WASHER 12.2 X 30 X 0.8 £3.60 Add to
008 321660100/0 WASHER 13 X 22 X 0.5 £3.60 Add to
009 322038404/0 DRIVE AXLE BUSH £5.84 Add to
010 322785126/0 BEARING SUPPORT £22.90 Add to
011 119216035/0 BEARING 6001 2RS (12 x 28 x 8) £4.33 Add to
012 112610095/0 CIRCLIP D=28 £3.60 Add to
013 122601909/0 PULLEY £6.30 Add to
014 135063710/0 TRAPEZOIDAL BELT Z25 £11.30 Add to
015 112645705/0 ROLL PIN D=5 X 32 £3.60 Add to
016 181003077/1 GEARBOX [BLACK] £72.80 Add to
017 125430220/0 SPRING £4.26 Add to
018 112000957/0 CIRCLIP D=10 £3.60 Add to
