Deck And Height Adjusting

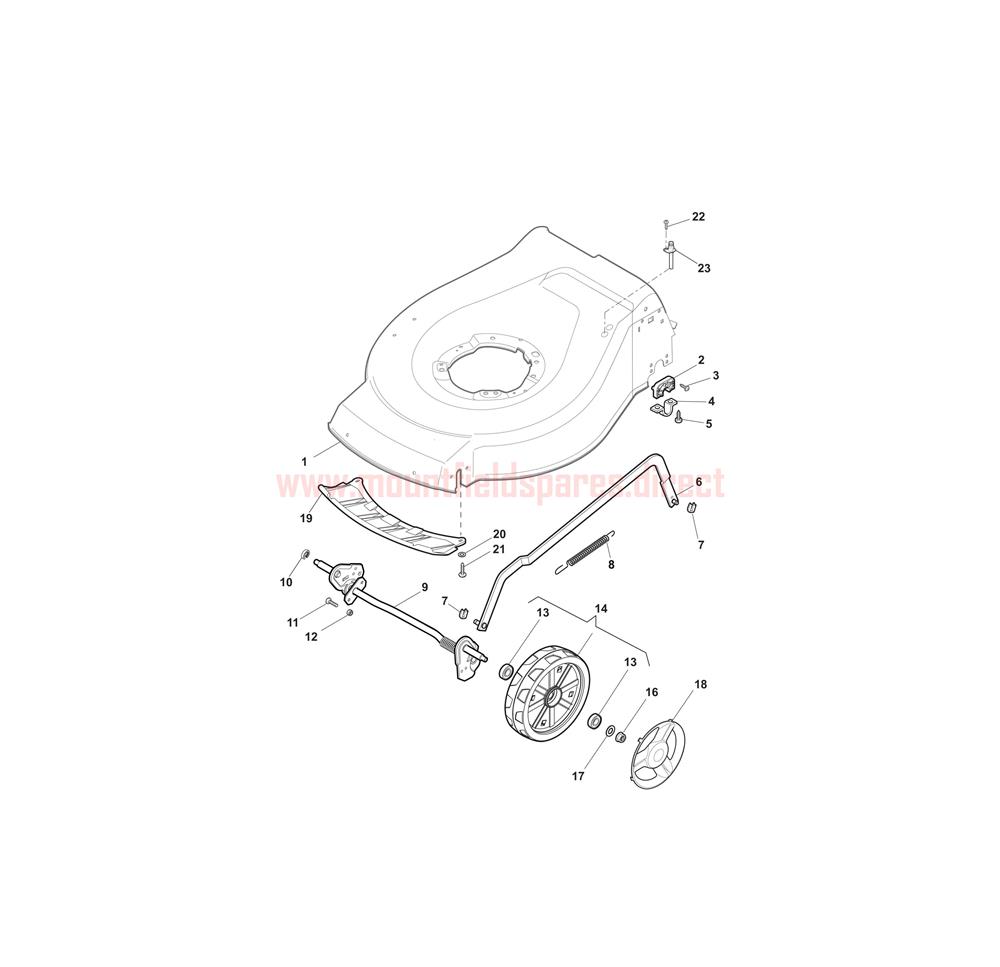

Deck And Height Adjusting assembly details for Mountfield S421R PD 299439043 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 381004723/0 Deck Red £96.55 Add to
002 322785304/0 Support £5.08 Add to
003 112728697/0 SELF-TAP SCREW PT TORX K50 X 16 £3.60 Add to
004 322545154/0 AXLE CATCH PLATE £6.30 Add to
006 381002042/0 HEIGHT ADJUST TIE BAR £24.28 Add to
007 112436051/0 PIN PLATE D=8 £3.60 Add to
008 122446193/0 SPRING £5.20 Add to
009 381302869/0 FRONT WHEELS AXLE £22.46 Add to
010 122171002/0 AXLE SPACER £4.33 Add to
011 112727803/0 SCREW TCB TORX M6 X 14 £3.60 Add to
012 112154510/0 LOW SELF-LOCKING NUT M6 £3.60 Add to
013 119216035/0 BEARING 6001 2RS (12 x 28 x 8) £4.33 Add to
014 381007448/1 DELTA WHEEL ASSEMBLY D=180mm £11.44 Add to
016 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
017 112521350/0 WASHER M8 8.4 X 16 X 1.6 £3.60 Add to
018 322110687/0 DELTA HUB CAP D=200 [GREY] £4.33 Add to
019 322500108/0 PLASTIC FRONT DECK GUARD HOLES 250mm £5.59 Add to
020 112523000/1 WASHER M4 4.3 X 12 X 1 £3.60 Add to
021 112728124/0 SELF-TAP SCREW TCB TORX 4.2 X 16 £3.60 Add to
022 112728450/0 SELF-TAP SCREW 4.8 X 19 £3.60 Add to
023 322034002/0 WASHING CONNECTION £4.33 Add to
