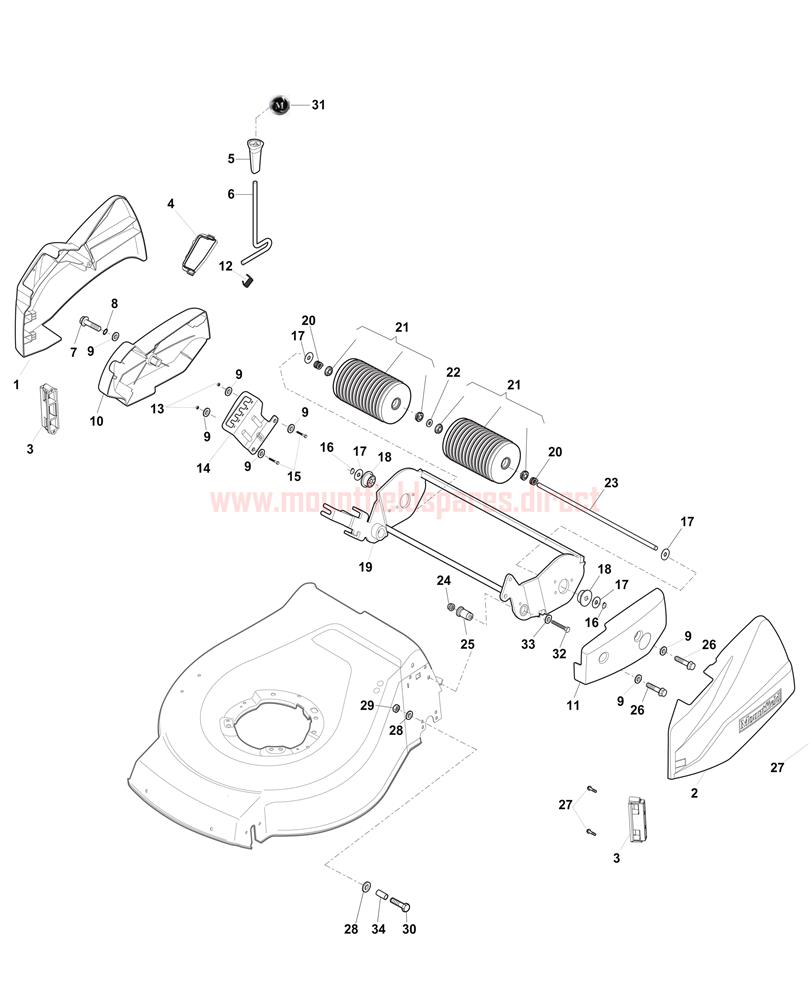

Roller assembly details for Mountfield S421R HP 299434043 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

001322060260/0RIGHT ROLLER COVER NT43 BLACK£9.85 Add to
002322060261/0LEFT ROLLER COVER [RED]£8.44 Add to
003322546053/0PLATE£3.00 Add to
004322570209/0HEIGHT ADJUST PLATE£8.73 Add to
005322394516/0HEIGHT ADJUST KNOB£4.35 Add to
006322321547/0HEIGHT ADJUST LEVER£9.14 Add to
007112735594/0HEX-HEAD SCREW M6 x 30£2.06 Add to
008119035002/0O RING 5.28 x 1.78£2.06 Add to
009112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
010322060248/1R/H ROLLER COVER NT [BLACK]£7.34 Add to
011322060249/0LEFT ROLLER COVER [BLACK]£7.23 Add to
012122446194/0SPRING£3.83 Add to
013112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
014322735603/0HEIGHT ADJUST QUADRANT£9.41 Add to
015112727803/0SCREW TCB TORX M6 x 14£2.06 Add to
016112000957/0CIRCLIP D=10£2.59 Add to
017322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£1.91 Add to
018322034512/0ROLLER AXLE BUSH£2.06 Add to
019381005169/0ROLLER SUPPORT ASSEMBLY£79.98 Add to
020122430210/0SPRING£2.06 Add to
021381007400/0ROLLER ASSEMBLY£19.61 Add to
022112521370/0WASHER M12 13 24 x 2.5£2.06 Add to
023122033360/0ROLLER AXLE£6.69 Add to
024112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
025122785132/0ROLLER SUPPORT£4.52 Add to
026112735592/0SELF-TAP SCREW M6 x 20£2.06 Add to
027112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
028122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
029112155015/0SELF-GRIP NUT M8(FROM 1ST SEPT 2015)£2.06 Add to
030125580030/0BELT GUIDE PIN£4.91 Add to
032112691700/0SCREW M8 x 55£1.91 Add to
033112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
034122167840/0SPACER£2.06 Add to
