Handle, Upper Part

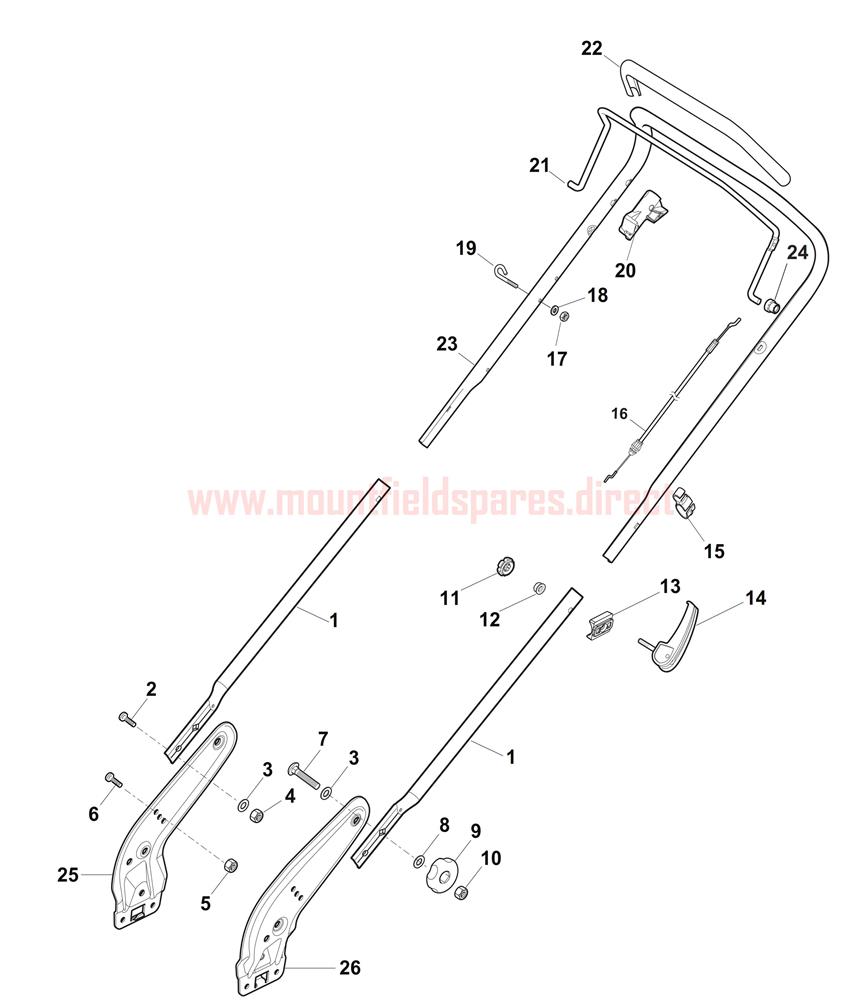

Handle, Upper Part assembly details for Mountfield S421R HP 299434043 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

001381007048/0LOWER HANDLE [BLACK] NT-R£31.63 Add to
002112727803/0SCREW TCB TORX M6 x 14£2.06 Add to
003112521330/0WASHER M6 6.4 x 12 x 1.6£2.06 Add to
004112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
005112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
006112760605/0SCREW TBEI M8 X 20MM£2.53 Add to
007112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
008112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
009122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
010112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
011381004310/0HANDLE FIXING ASSEMBLY£2.32 Add to
012122131750/0NUT M8£2.06 Add to
013322680016/0HANDLE FIXING WASHER£2.06 Add to
014381103359/1LOCKING HANDLE LEVER L=62 [BLACK]£5.07 Add to
015118390020/0CABLE CLIP£1.91 Add to
016181030053/0ENGINE BRAKE CABLE L=1150£16.87 Add to
019122430313/0PULL CORD GUIDE£4.37 Add to
020322545204/0LEVER FULCRUM PLATE£2.02 Add to
021181003300/1ENGINE BRAKE LEVER£15.54 Add to
022122291050/0HANDLE GRIP [BLACK]£14.58 Add to
023381006838/0UPPER HANDLE [BLACK] NT£32.83 Add to
024122041966/0CONTROL LEVER BUSH£2.06 Add to
025381005149/0RIGHT HANDLE BRACKET£15.54 Add to
026381005151/0LEFT HANDLE BRACKET£15.54 Add to
