Deck And Height Adjusting

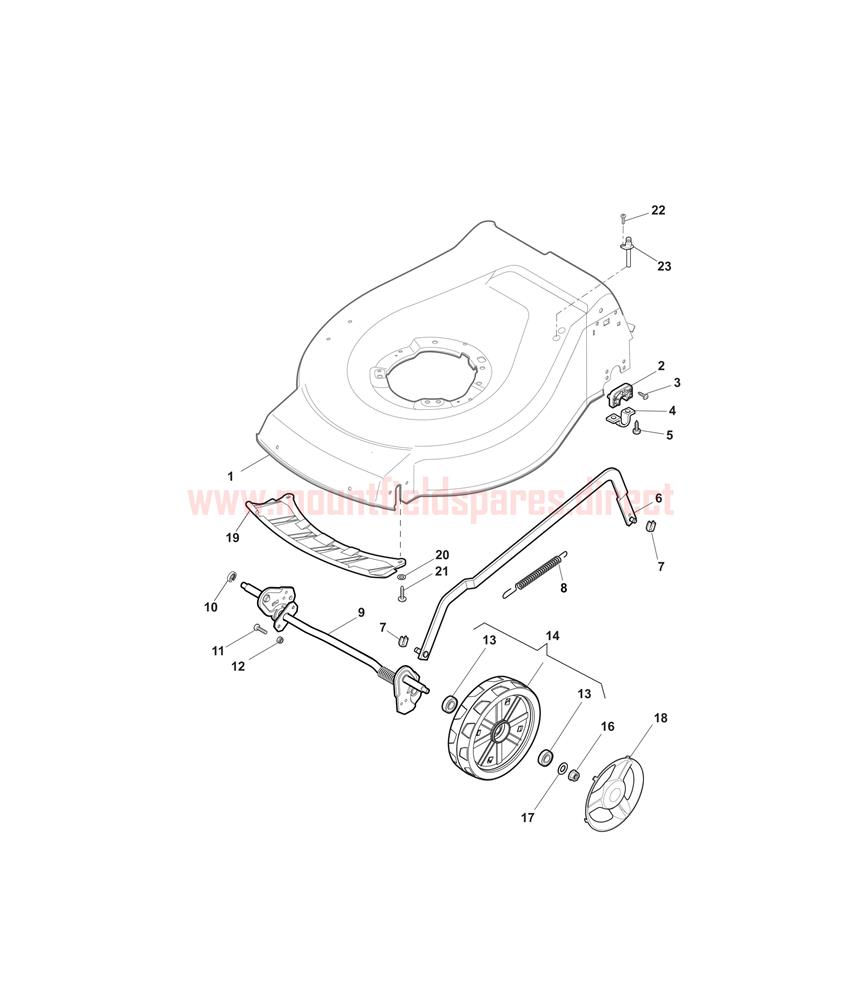

Deck And Height Adjusting assembly details for Mountfield S421R HP 299434043 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381004724/0STEEL DECK NT43 ROLLER [RED]£128.40 Add to
002322785304/1REAR AXLE SUPPORT£3.12 Add to
003112728697/0SELF-TAP SCREW PT TORX K50 x 16£1.43 Add to
004322545154/0AXLE CATCH PLATE£2.46 Add to
006381002042/0HEIGHT ADJUST TIE BAR£24.28 Add to
007112436051/0PIN PLATE D=8£1.43 Add to
008122446193/0SPRING£4.62 Add to
009381302869/0FRONT WHEELS AXLE£22.46 Add to
010122171002/0AXLE SPACER£2.46 Add to
011112727803/0SCREW TCB TORX M6 x 14£2.46 Add to
012112154510/0LOW SELF-LOCKING NUT M6£1.43 Add to
013119216035/0BEARING 6001 2RS (12 x 28 x 8)£4.14 Add to
014381007448/1DELTA WHEEL ASSEMBLY D=180mm£10.98 Add to
016112155000/0LOW SELF-LOCKING NUT M8£1.43 Add to
017112521350/0WASHER M8 8.4 x 16 x 1.6£1.43 Add to
018322110687/0DELTA HUB CAP D=200 [GREY]£3.12 Add to
020112523000/1WASHER M4 4.3 x 12 x 1£1.43 Add to
021112728124/0SELF-TAP SCREW TCB TORX 4.2 x 16£1.43 Add to
022112728450/0SELF-TAP SCREW 4.8 x 19£1.43 Add to
023322034002/0WASHING CONNECTION£2.46 Add to
