Height Adjusting

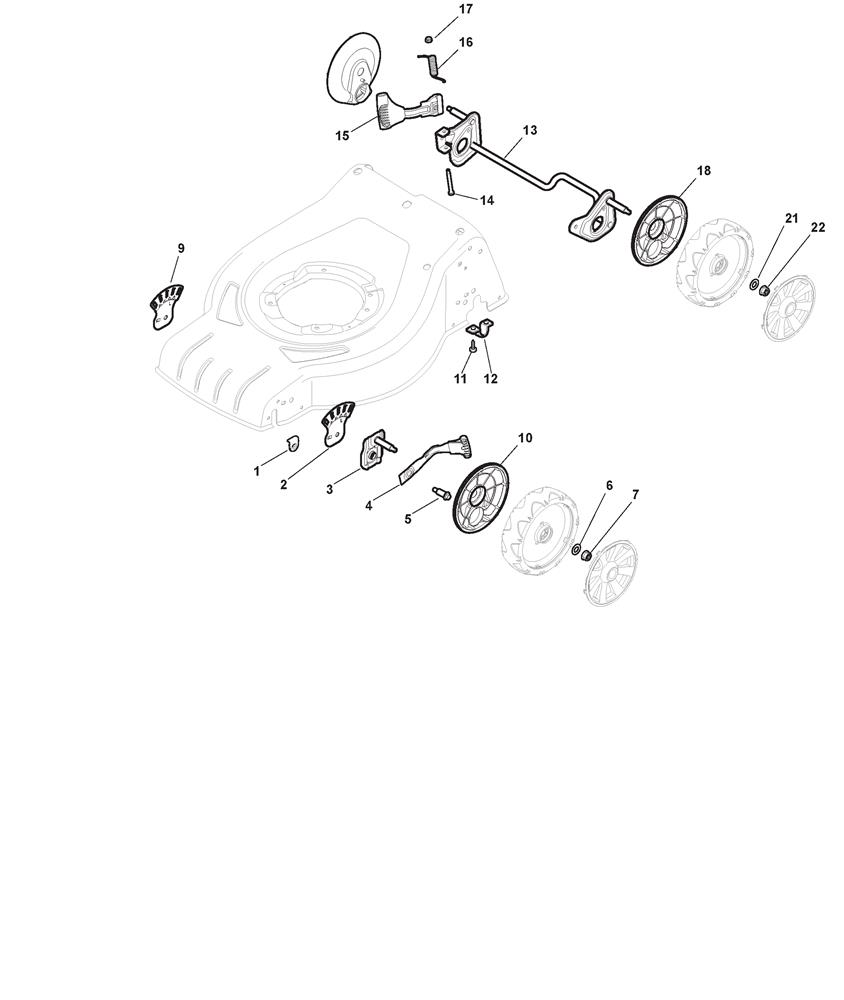

Height Adjusting assembly details for Mountfield S421 PD 295432043 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 322545189/0 HANDLE FIXING PLATE £5.13 Add to
002 322735597/1 Sector, Height Adjustment £4.33 Add to
003 381005141/0 WHEEL STUB AXLE £9.44 Add to
004 381003354/0 HEIGHT ADJUST LEVER £4.63 Add to
005 122519811/0 WHEEL BOLT £3.89 Add to
006 112521350/0 WASHER M8 8.4 X 16 X 1.6 £3.60 Add to
007 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
009 322735595/1 Sector, Height Adjustment £4.33 Add to
011 112728698/0 SELF-TAPPING SCREW K50 X 20 £3.60 Add to
012 322545152/0 AXLE BRACKET £3.60 Add to
013 381302819/0 REAR WHEEL AXLE £21.07 Add to
014 122534131/0 PIN £3.60 Add to
015 381003356/0 Lever, Height Adjustment £5.38 Add to
016 122446192/0 SPRING £5.04 Add to
017 112154510/0 LOW SELF-LOCKING NUT M6 £3.60 Add to
018 322600204/0 INNER WHEEL COVER D=180 £5.39 Add to
