Handle, Lower Part

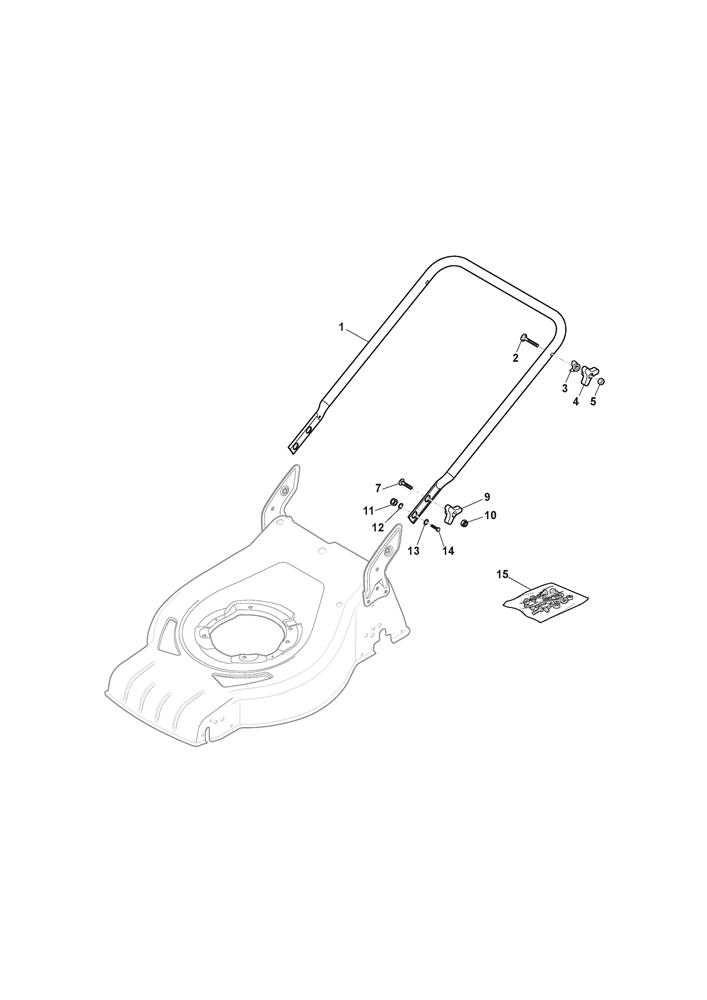

Handle, Lower Part assembly details for Mountfield S421 PD 295432043 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 381006737/0 LOWER HANDLE [BLACK] £25.04 Add to
002 112819110/0 CARRIAGE BOLT M8 X 50 £3.60 Add to
003 122671651/0 WASHER 8.3 X 22 X2 £3.60 Add to
004 122399900/0 3 SPOKE HANDWHEEL [BLACK] £5.18 Add to
005 112293200/0 HEXAGON NUT M8 £3.60 Add to
007 112818900/0 SCREW TTDQ M8 X 35 £3.60 Add to
011 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
012 112521350/0 WASHER M8 8.4 X 16 X 1.6 £3.60 Add to
013 112369500/0 SPRING WASHER D=8 £3.60 Add to
014 112760605/0 SCREW TBEI M8 x 20 £3.60 Add to
015 381008691/0 SCREWS ASSEMBLY KIT £8.40 Add to
