Handle, Lower Part

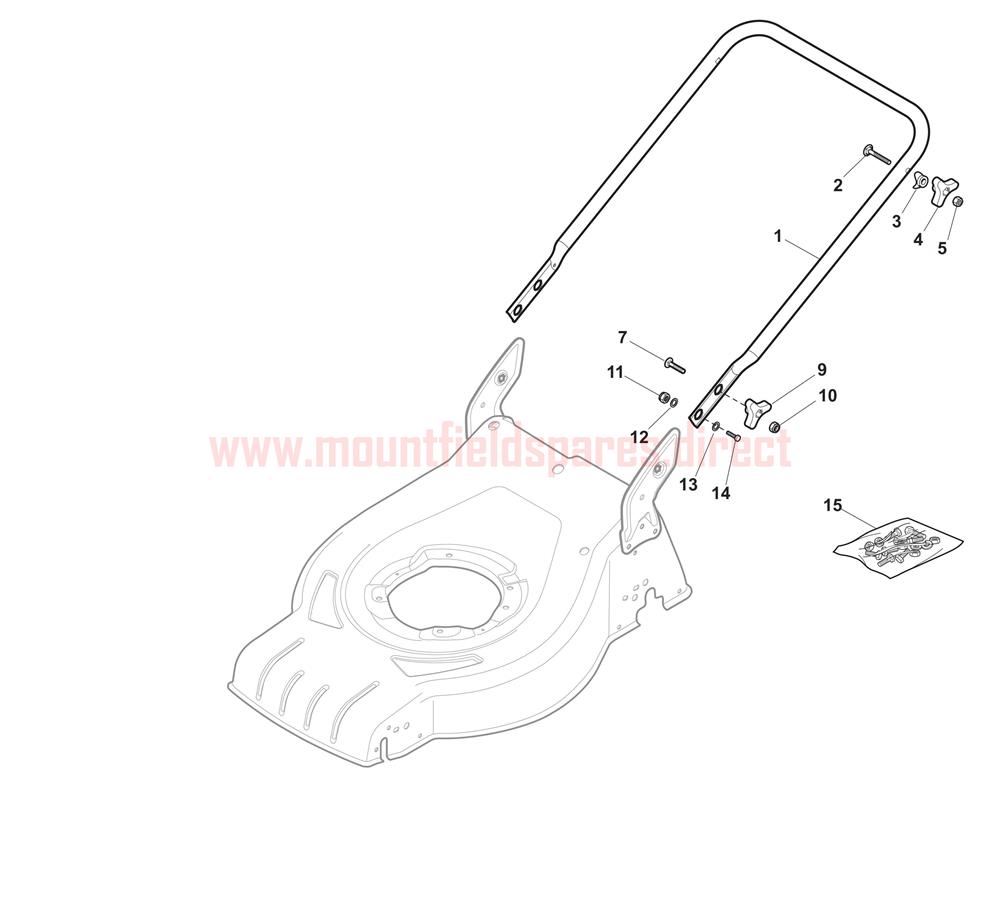

Handle, Lower Part assembly details for Mountfield S421 HP (295431043) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381006785/0LOWER HANDLE [BLACK]£24.93 Add to
002112819110/0CARRIAGE BOLT M8 x 50£1.92 Add to
003122671651/0WASHER 8.3 x 22 x 2£2.21 Add to
004122399900/03 SPOKE HANDWHEEL [BLACK]£1.96 Add to
005112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.96 Add to
007112818900/0SCREW TTDQ M8 x 35£1.87 Add to
011112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
012112521350/0WASHER M8 8.4 x 16 x 1.6£1.96 Add to
013112369500/0SPRING WASHER D=8£1.70 Add to
014112760605/0SCREW TBEI M8 X 20MM£2.41 Add to
015381008691/0SCREWS ASSEMBLY KIT£8.57 Add to
