Deck

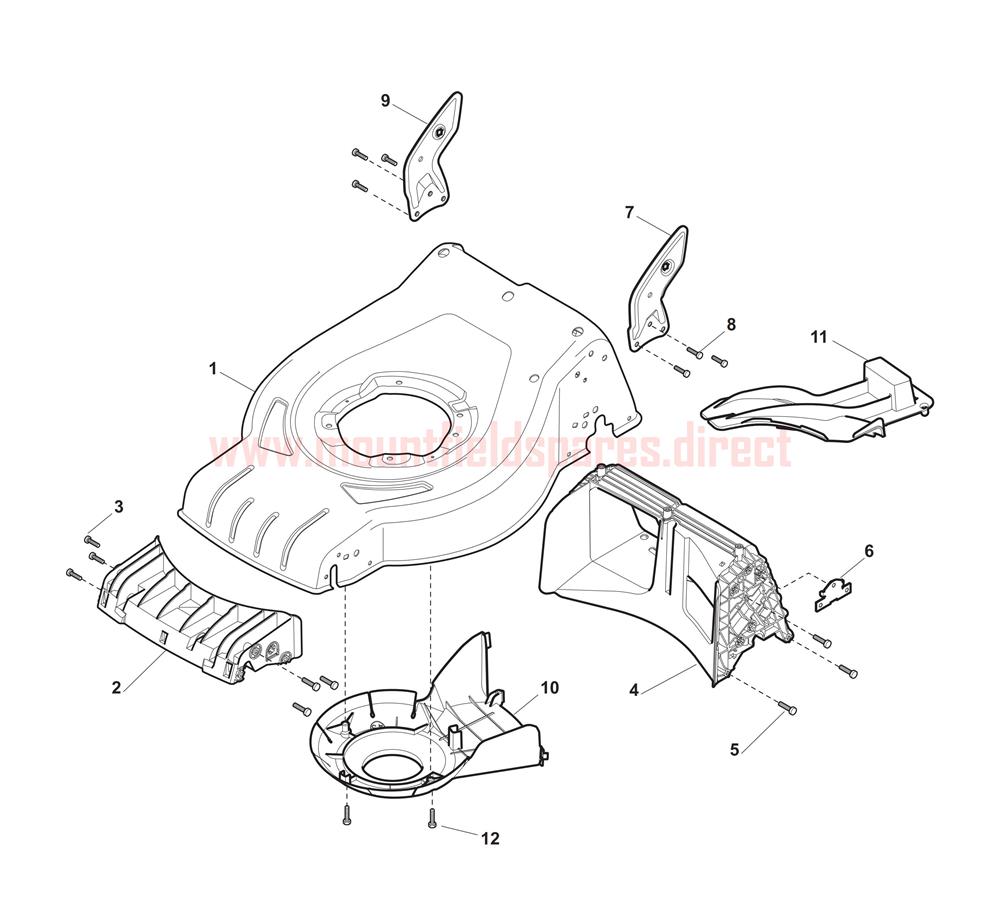

Deck assembly details for Mountfield S421 HP (295431043) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381004932/0STEEL DECK CR/CRL 43 [GREY]£99.60 Add to
002322108300/2PLASTIC FRONT BAFFLE [CRUISER 43]£10.74 Add to
003112728699/0SELF-TAPPING SCREW K60 x 22£2.46 Add to
004322108302/0PLASTIC REAR BAFFLE£24.60 Add to
006322545213/0FIXING PLATE£2.58 Add to
007381005139/0LEFT HANDLE BRACKET£6.66 Add to
008112727801/0SCREW TCB TORX M6 x 20£2.46 Add to
009381005137/0RIGHT HANDLE BRACKET£6.66 Add to
010322060241/0BELT PROTECTION GUARD CR43£7.56 Add to
011322140240/0MULCHING PLUG [CRUISER 43]£9.89 Add to
012112728530/0SELF-TAP SCREW 4.8 x 25£1.43 Add to
