Transmission

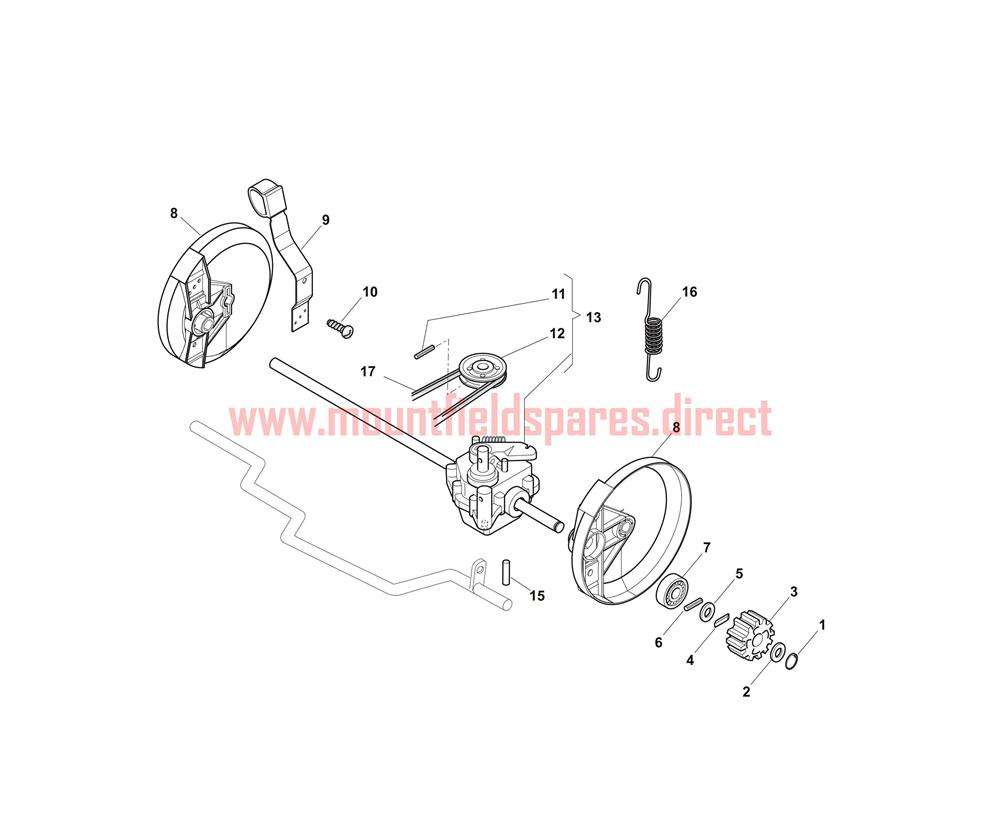

Transmission assembly details for Mountfield MOLEMASTER 46PD (299274648) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 112608520/0 CIRCLIP D=11 £3.89 Add to
002 322160520/0 DUST COVER £5.08 Add to
003 122570125/0 RIGHT/LEFT PINION GEAR £12.67 Add to
004 122076645/0 DRIVE KEY 4 x 8 x 15 £3.89 Add to
006 112622620/0 CYLINDRICAL PIN D=4x20 £3.89 Add to
007 122122202/0 BEARING D12 £4.21 Add to
008 322600106/1 INNER WHEEL COVER D=190 £10.07 Add to
009 381003303/0 REAR HEIGHT ADJUST LEVER £18.01 Add to
010 112728689/0 SCREW KA50 x 12 £3.89 Add to
011 112713801/0 DOWEL PIN M6 x 8 £3.89 Add to
012 122601909/0 PULLEY £6.30 Add to
013 181003093/1 GEARBOX [BLACK] (FROM 01/09/08) £83.87 Add to
015 122753001/0 PIN D=4 x 32 £3.89 Add to
016 122450438/0 SPRING (FROM 01/09/07) £6.30 Add to
017 135063750/0 TRAPEZOIDAL BELT X10 LP=680 (FROM 01/09/07) £12.20 Add to
