Deck And Height Adjusting

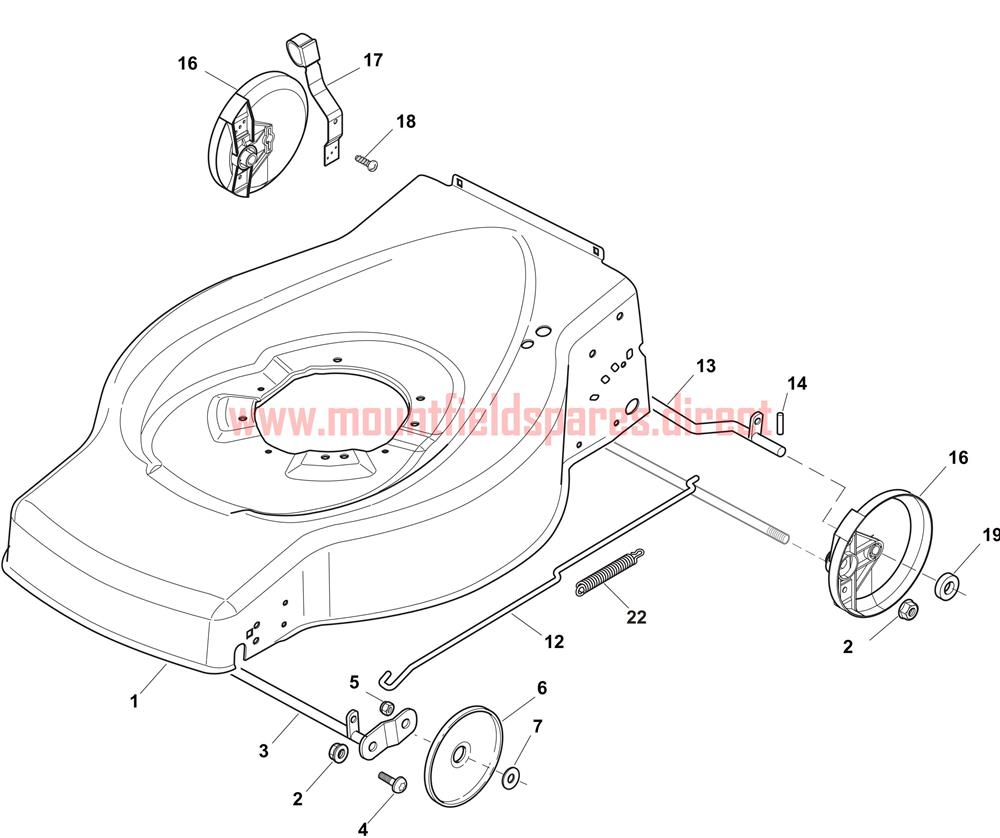

Deck And Height Adjusting assembly details for Mountfield MOLEMASTER 46PD (299274648) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 381004745/0 STEEL DECK [GREY] ES/ESL 464 [FROM 1/9/13] £83.60 Add to
002 122131750/0 NUT M8 £3.60 Add to
003 381000153/0 FRONT WHEELS AXLE £42.47 Add to
004 112760600/0 SCREW M8 X 16 £3.60 Add to
005 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
006 322600095/0 INNER WHEEL COVER D=165 £5.84 Add to
007 325670011/0 ANTI-FRICTION WASHER 8.2 X 19 X 0.8 £3.89 Add to
012 122033317/0 HEIGHT ADJUST TIE ROD £18.41 Add to
013 381000159/0 REAR WHEELS AXLE( FROM 1ST SEPT 2006) £23.38 Add to
014 122753001/0 PIN D=4 x 32 £3.89 Add to
016 322600106/1 INNER WHEEL COVER D=190 £10.07 Add to
017 381003303/0 REAR HEIGHT ADJUST LEVER £18.01 Add to
018 112728689/0 SCREW KA50 x 12 £3.89 Add to
019 122122202/0 BEARING D12 £4.21 Add to
