Blade

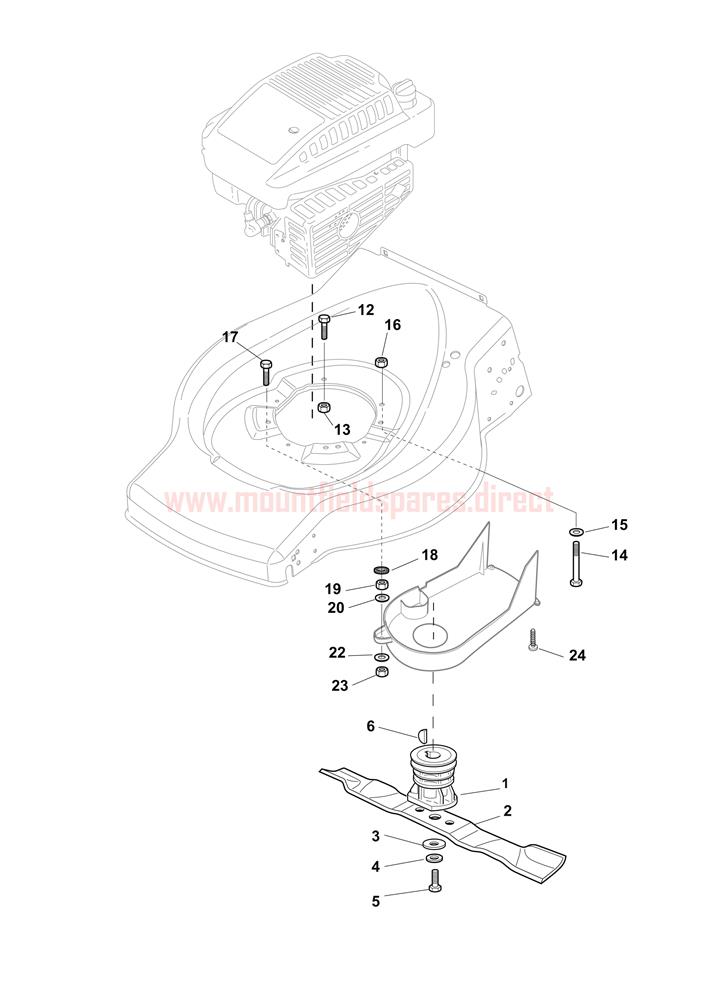

Blade assembly details for Mountfield MOLEMASTER 46PD (299274648) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 122465607/3 BLADE BOSS D=22.2mm £11.06 Add to
002 181004365/3 BLADE 44cm £11.12 Add to
003 122160400/0 SPRING WASHER 50 X 2 X 10.2 £3.60 Add to
004 112523080/0 WASHER M10 11 X 30 X 2.5 £3.60 Add to
005 112735698/0 HEX-HEAD SCREW 3/8" x 2" £3.60 Add to
006 112139100/0 WOODRUFF KEY 4 X 6.5 D=16 £3.60 Add to
012 112691100/0 HEX-HEAD SCREW M8 x 35 £3.89 Add to
013 112293201/0 HEXAGON NUT M8 £3.60 Add to
014 112691100/0 HEX-HEAD SCREW M8 x 35 £3.89 Add to
015 112521350/0 WASHER M8 8.4 X 16 X 1.6 £3.60 Add to
016 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
017 112691115/0 HEX-HEAD SCREW M8 X 40 £3.60 Add to
017 112691200/0 HEX-HEAD SCREW M8 X 45 £3.60 Add to
018 112540060/0 SERRATED LOCK WASHER M8 £3.89 Add to
019 112293200/0 HEXAGON NUT M8 £3.60 Add to
020 122671651/0 WASHER 8.3 X 22 X2 £3.60 Add to
022 325670011/0 ANTI-FRICTION WASHER 8.2 X 19 X 0.8 £3.89 Add to
024 112728686/0 SELF-TAP SCREW KA50 X 16MM £3.60 Add to
