Roller

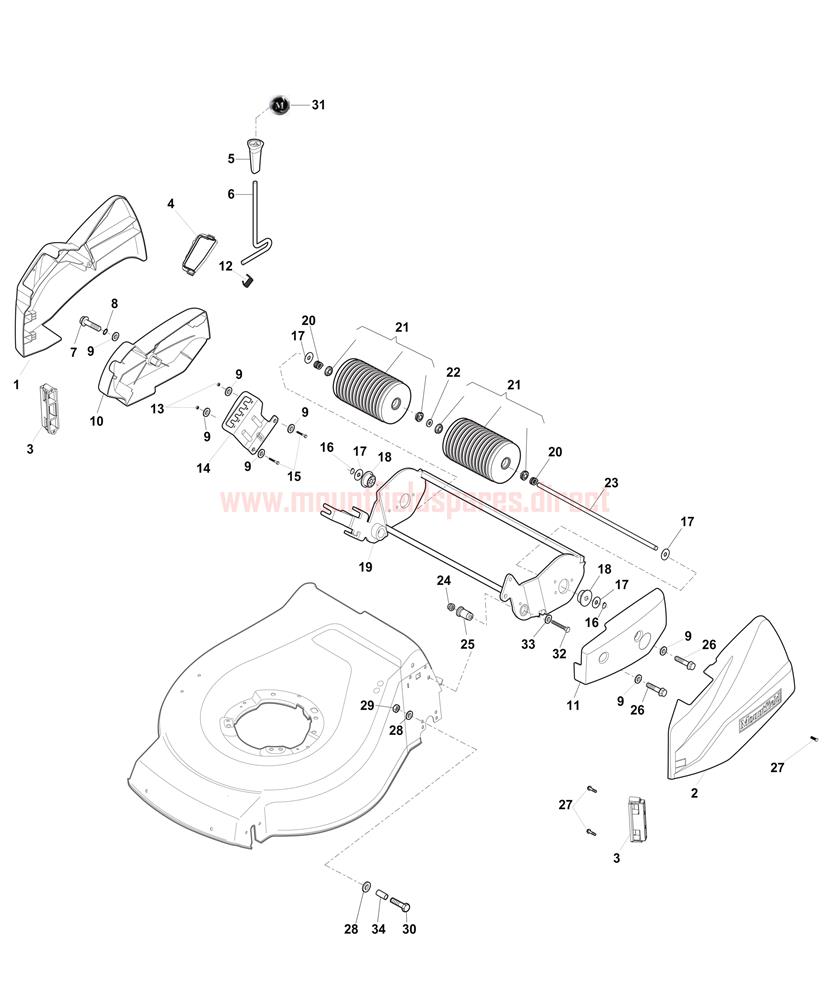

Roller assembly details for Mountfield HP42R (299434143) BQ 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 322060260/1 RIGHT ROLLER COVER [RED] £7.26 Add to
002 322060261/0 LEFT ROLLER COVER [RED] £7.26 Add to
003 322546053/0 PLATE £4.33 Add to
004 322570209/0 HEIGHT ADJUST PLATE £6.52 Add to
005 322394516/0 HEIGHT ADJUST KNOB £4.33 Add to
006 322321547/0 HEIGHT ADJUST LEVER £5.08 Add to
007 112735594/0 HEX-HEAD SCREW M6 X 30 £3.60 Add to
008 119035002/0 O RING 5.28 X 1.78 £3.60 Add to
009 112523040/0 WASHER M6 6.6 X 18 X 1.6 £3.60 Add to
010 322060248/1 R/H ROLLER COVER NT [BLACK] £5.58 Add to
012 122446194/0 SPRING £4.33 Add to
013 112154510/0 LOW SELF-LOCKING NUT M6 £3.60 Add to
014 322735603/0 HEIGHT ADJUST QUADRANT £6.91 Add to
015 112727803/0 SCREW TCB TORX M6 X 14 £3.60 Add to
016 112000957/0 CIRCLIP D=10 £3.60 Add to
017 322672151/0 ANTI-FRICTION WASHER 12.2 X 30 X 0.8 £3.60 Add to
018 322034512/0 ROLLER AXLE BUSH £5.08 Add to
019 381005169/0 ROLLER SUPPORT ASSEMBLY £53.17 Add to
020 122430210/0 SPRING £4.33 Add to
021 381007400/0 ROLLER ASSEMBLY £16.60 Add to
022 112521370/0 WASHER M12 13 24 X 2.5 £3.89 Add to
023 122033360/0 ROLLER AXLE £9.53 Add to
024 112293201/0 HEXAGON NUT M8 £3.60 Add to
025 122785132/0 ROLLER SUPPORT £7.35 Add to
026 112735592/0 SELF-TAP SCREW M6 x 20 £3.89 Add to
027 112728706/0 SELF-TAP SCREW PT TORX K40 £3.60 Add to
028 122671651/0 WASHER 8.3 X 22 X2 £3.60 Add to
029 112155015/0 SELF-GRIP NUT M8 £3.60 Add to
030 125580030/0 BELT GUARD PIN £6.17 Add to
031 114366134/0 ADJUST LEVER DECAL ROLLER[MOUNTFIELD] £6.14 Add to
032 112691700/0 SCREW M8 X 55 £3.60 Add to
033 112523060/0 WASHER M8 8.4 X 24 X 2 £3.60 Add to
034 122167840/0 SPACER £4.33 Add to
