Blade

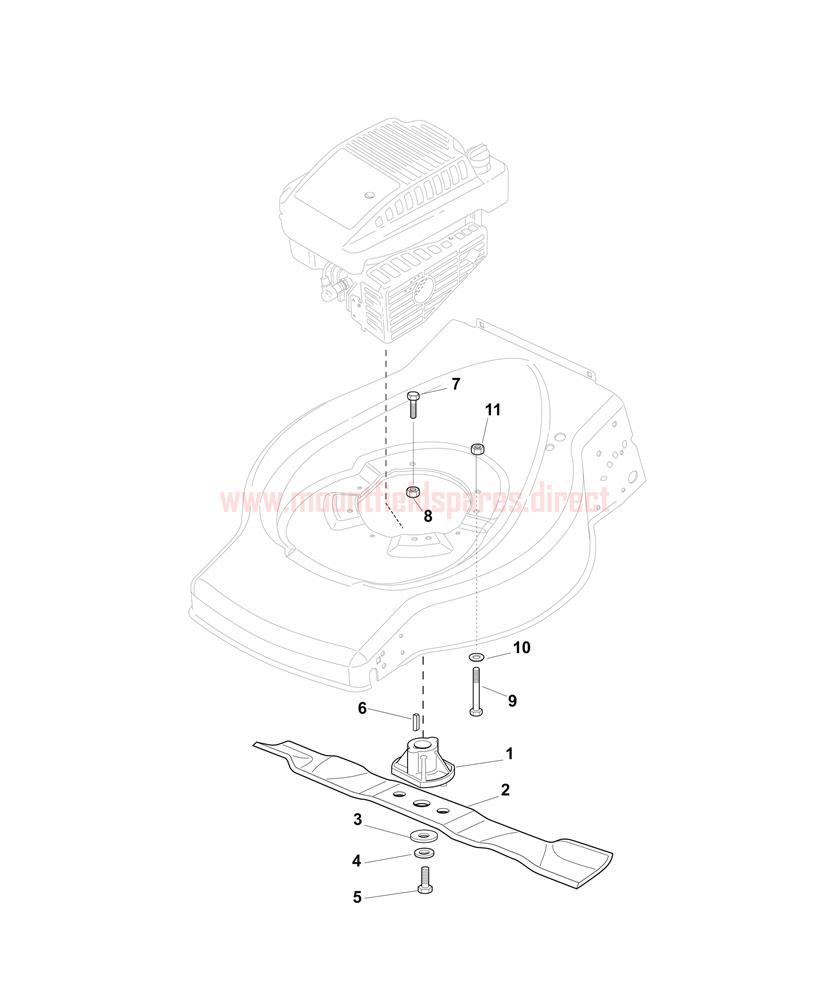

Blade assembly details for Mountfield HP180 (299174623) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 122463012/2 BLADE BOSS D=22.2 £8.22 Add to
002 181004365/3 BLADE 44cm £11.12 Add to
003 122160400/0 SPRING WASHER 50 X 2 X 10.2 £3.60 Add to
004 112523080/0 WASHER M10 11 X 30 X 2.5 £3.60 Add to
005 112735698/0 HEX-HEAD SCREW 3/8" x 2" £3.60 Add to
006 112139100/0 WOODRUFF KEY 4 X 6.5 D=16 £3.60 Add to
007 112793701/0 HEX-HEAD SCREW M8 X 30 £3.60 Add to
008 112293201/0 HEXAGON NUT M8 £3.60 Add to
009 112691800/0 SCREW M8 X 60 £3.60 Add to
010 112521350/0 WASHER M8 8.4 X 16 X 1.6 £3.60 Add to
011 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
