Handle, Lower Part (ERGO Version)

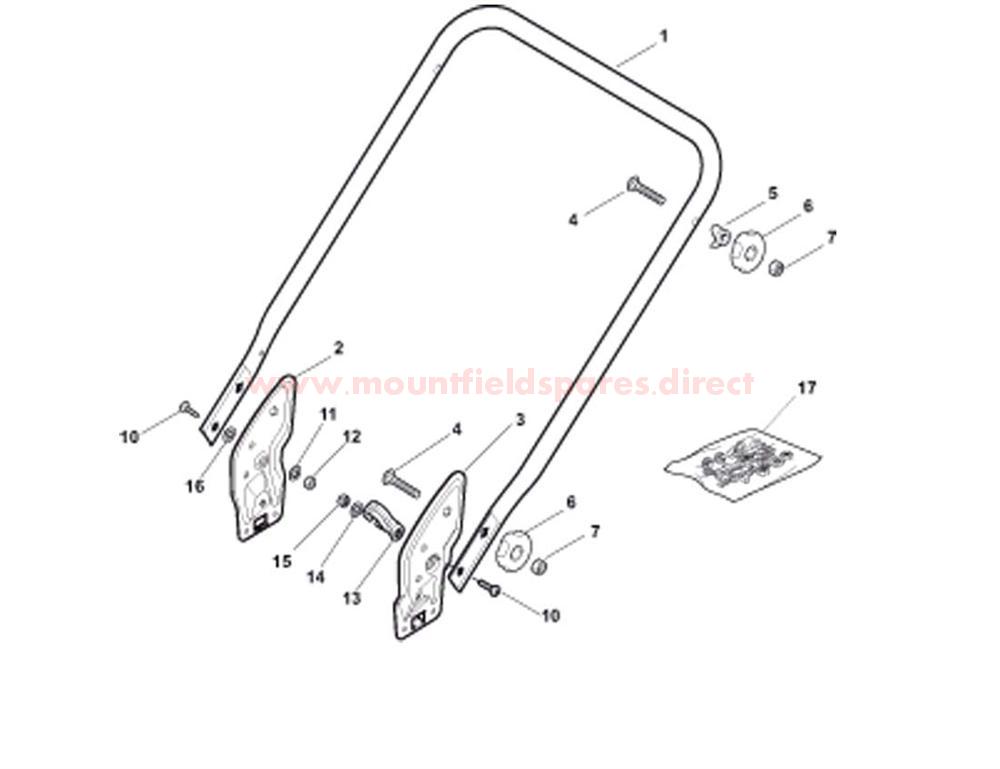

Handle, Lower Part (ERGO Version) assembly details for Mountfield XS50MH (20141125) 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

001381007043/0LOWER HANDLE [BLACK]£26.18 Add to
002381005133/0RIGHT HANDLE BRACKET£7.10 Add to
003381005135/0LEFT HANDLE BRACKET£7.10 Add to
004112819121/0CARRIAGE BOLT M8 X 55£1.96 Add to
005122680006/1PLASTIC WASHER£1.91 Add to
006122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
007112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
010112760605/0SCREW TBEI M8 X 20MM£2.53 Add to
011125038002/1BUSH£2.06 Add to
012112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
013322192156/0CABLE HOLDER CLAMP£2.06 Add to
014112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
015112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
016112369500/0SPRING WASHER D=8£1.79 Add to
017381008686/0SCREW ASSEMBLY KIT£9.41 Add to
