Handle, Upper Part

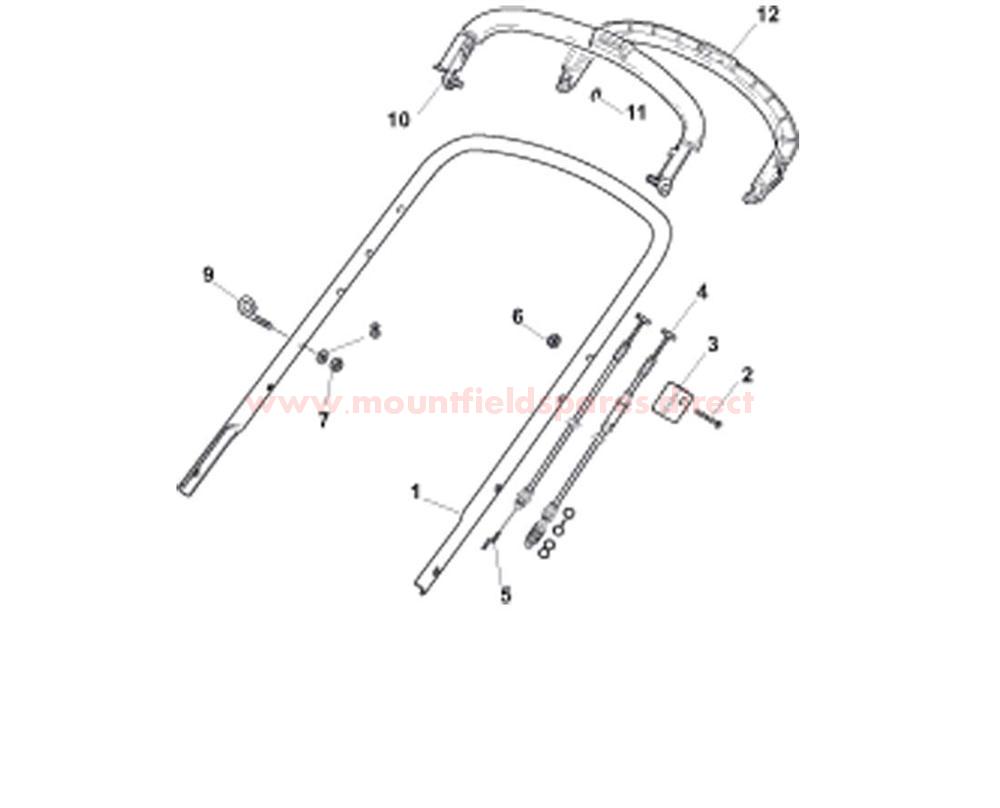

Handle, Upper Part assembly details for Mountfield SP535HW4S (20141125) 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381006867/0UPPER HANDLE [ASTRAL GREY]£35.71 Add to
002112727787/0CROSS-HEAD SCREW M6 x 70£1.91 Add to
003322551685/0CABLE HOLDER BLOCK£7.52 Add to
004381030055/0CLUTCH DRIVE CABLE£21.12 Add to
005181030056/0ENGINE BRAKE CABLE£15.06 Add to
006112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
007112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
008112521330/0WASHER M6 6.4 x 12 x 1.6£2.06 Add to
009122430313/0PULL CORD GUIDE£4.37 Add to
010381003330/0BRAKE LEVER ASSEMBLY-METAL ENDS£68.42 Add to
011112000930/0CIRCLIP D=6£0.79 Add to
012381003297/1DRIVE CONTROL LEVER£22.49 Add to
