Rear Drive 4-Speed

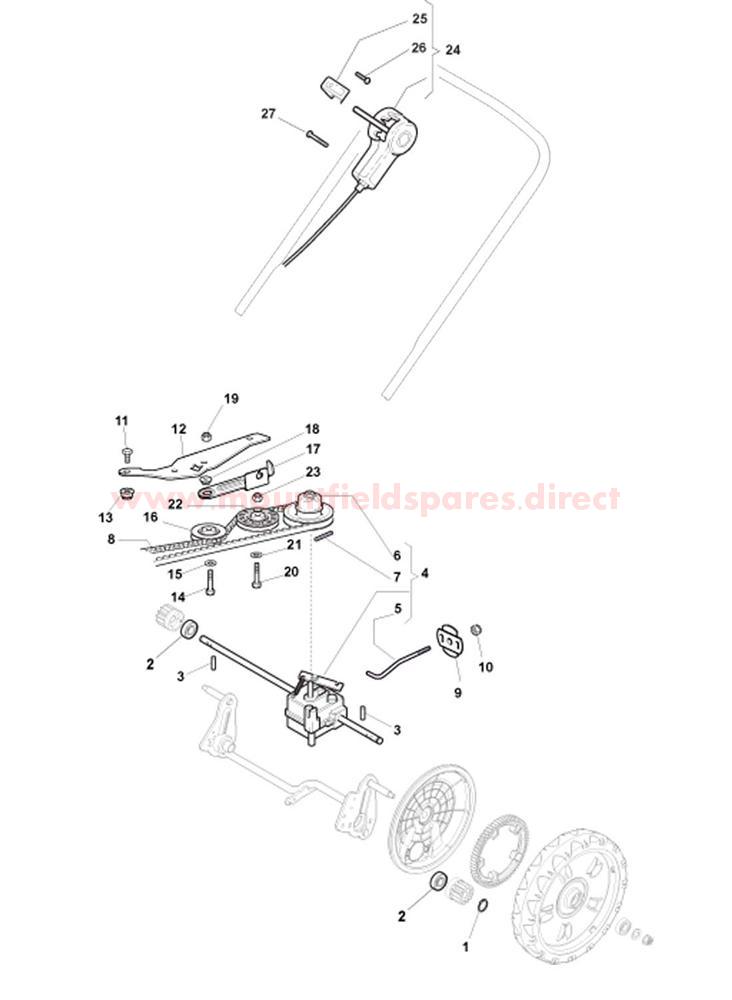

Rear Drive 4-Speed assembly details for Mountfield SP535HW 4S (20140108) 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

001112608600/0CIRCLIP D=12£2.08 Add to
002119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
003122753000/0PIN D=5.2 x 25.65£2.06 Add to
004181003096/3GEARBOX GT VE2002 EVO+VARIATOR WBH STEEL£137.42 Add to
005122033285/0GEARBOX ADJUSTING ROD 4S£6.14 Add to
006122601925/0PULLEY£61.56 Add to
007112645700/0PIN£2.06 Add to
008135064010/0TRAPEZOIDAL BELT SPZX812£15.13 Add to
009322675113/0VARIATOR CLAMP WASHER£2.06 Add to
010112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
011112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
012322806625/1PULLEY LEVER£6.63 Add to
013112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
014112689500/0SCREW M6 x 40£2.06 Add to
015112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
016122601915/0TENSION PULLEY£21.82 Add to
017322806623/0PULLEY SUPPORT BRACKET£4.52 Add to
018122671656/0WASHER£6.42 Add to
019112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
020112674700/0SCREW M6 X 35£2.06 Add to
021112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
022122601914/0BELT GUIDE PULLEY£21.95 Add to
023112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
024381007110/04 SPEED CABLE ASSEMBLY£42.53 Add to
025322399809/04 SPEED CABLE KNOB£2.06 Add to
026112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
027112728702/0SELF-TAP SCREW WN1451 K50 x 40£2.06 Add to
