Ass.Y Roller 2

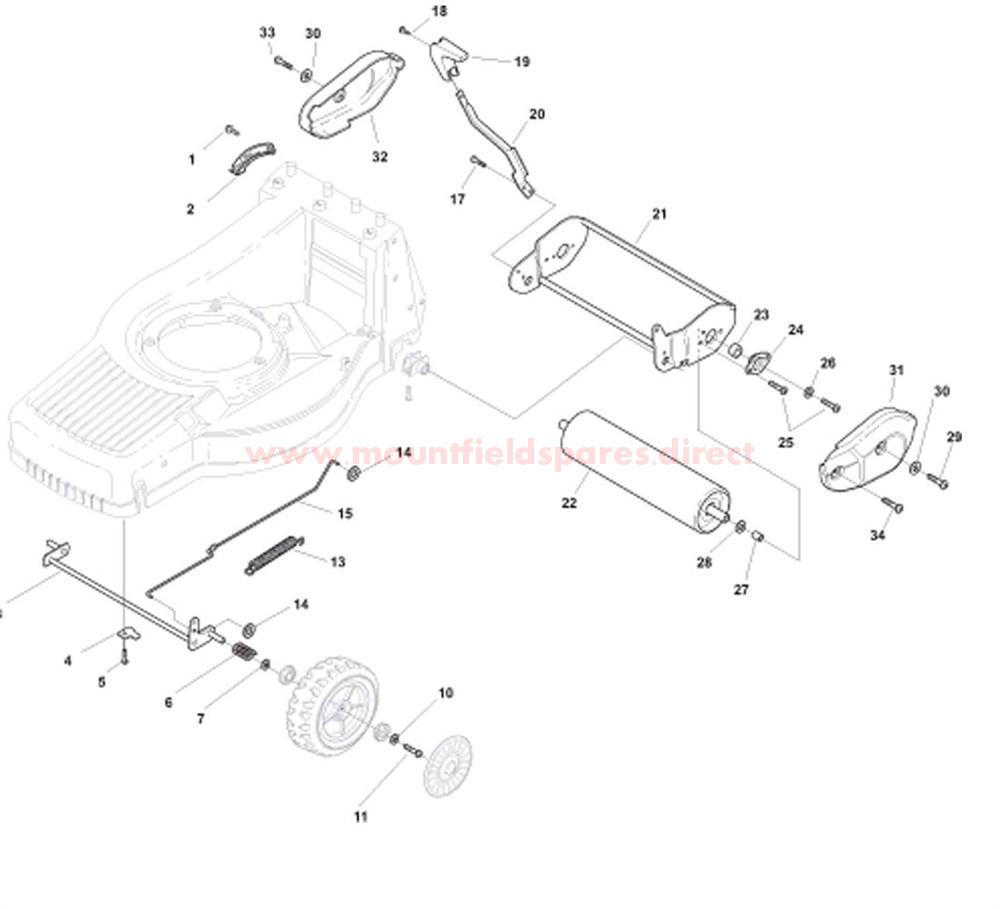

Ass.Y Roller 2 assembly details for Mountfield SP505R (20140108) 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

001112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
002322735553/0HEIGHT ADJUST QUADRANT£9.54 Add to
005112735664/0SCREW M6 x 16£2.02 Add to
006122430210/0SPRING£2.06 Add to
007112521370/0WASHER M12 13 24 x 2.5£2.06 Add to
010112521460/0WASHER M6 6.5 x 22 x 1.5£0.79 Add to
011112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
013122446181/0SPRING£7.10 Add to
014112604898/0STARLOCK WASHER D=7£2.02 Add to
015122033325/0HEIGHT ADJUST TIE ROD£12.90 Add to
017112735664/0SCREW M6 x 16£2.02 Add to
018112728690/0SELF-TAP SCREW KA50 x 25£0.79 Add to
019322399805/0HEIGHT ADJUST KNOB£14.05 Add to
020322321505/0HEIGHT ADJUST LEVER [ROLLER]£17.72 Add to
021381005115/0ROLLER SUPPORT ASSEMBLY 50cm£129.74 Add to
022381007403/0ROLLER ASSEMBLY [50]£294.82 Add to
023119216036/0BEARING 6201-2RS£9.96 Add to
024322207323/0BEARING FLANGE£19.36 Add to
025112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
026112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
027122170820/0ROLLER SPACER£18.13 Add to
028112523100/0WASHER M12 14 x 36 x 3£2.06 Add to
029112735592/0SELF-TAP SCREW M6 x 20£2.06 Add to
030112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
031322060202/0LEFT ROLLER COVER [RED]£2.87 Add to
032322060201/0RIGHT ROLLER CHAIN COVER [RED]£2.47 Add to
033112735592/0SELF-TAP SCREW M6 x 20£2.06 Add to
034112735594/0HEX-HEAD SCREW M6 x 30£2.06 Add to
