Handle, Lower Part

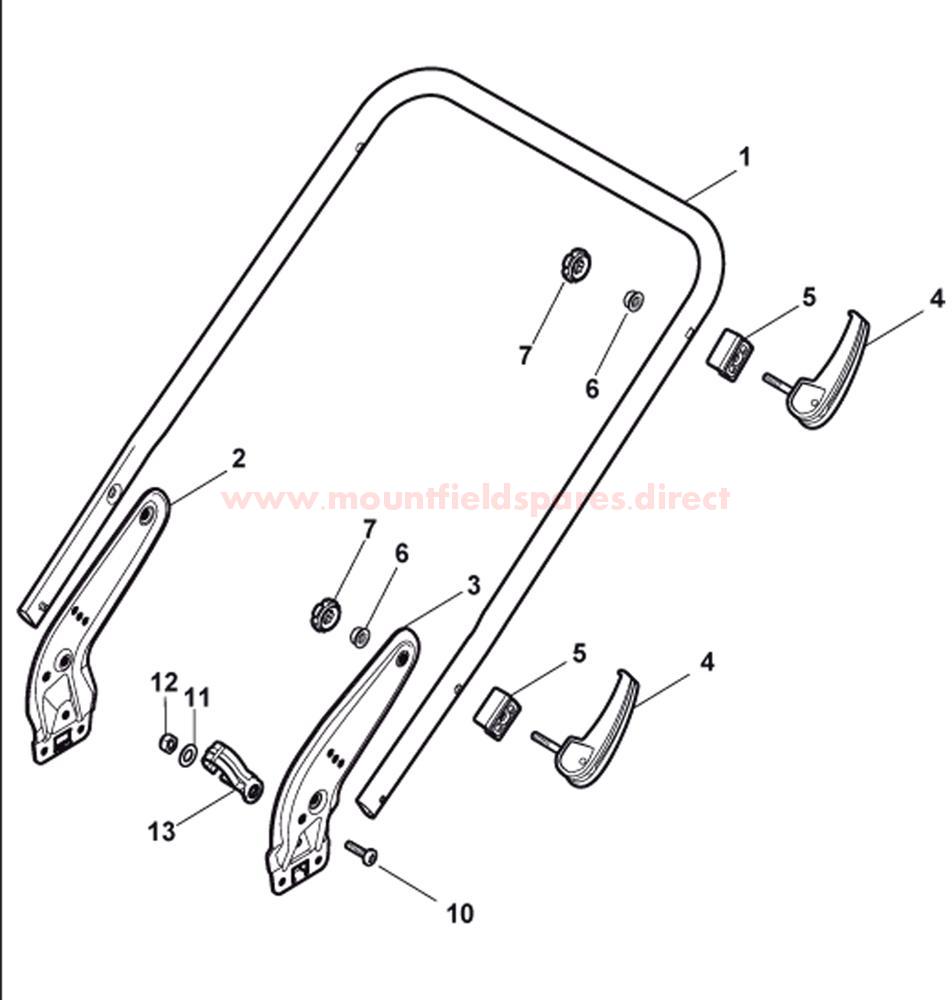

Handle, Lower Part assembly details for Mountfield SP 530 HW (Model Year 2012) 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

001381006719/0LOWER HANDLE NTD [BLACK]£47.97 Add to
002381005149/0RIGHT HANDLE BRACKET£15.54 Add to
003381005151/0LEFT HANDLE BRACKET£15.54 Add to
004381103359/1LOCKING HANDLE LEVER L=62 [BLACK]£5.07 Add to
005322680016/0HANDLE FIXING WASHER£2.06 Add to
006122131750/0NUT M8£2.06 Add to
007381004310/0HANDLE FIXING ASSEMBLY£2.32 Add to
010112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
011125038002/1BUSH£2.06 Add to
012112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
013322192156/0CABLE HOLDER CLAMP£2.06 Add to
