Gear Box

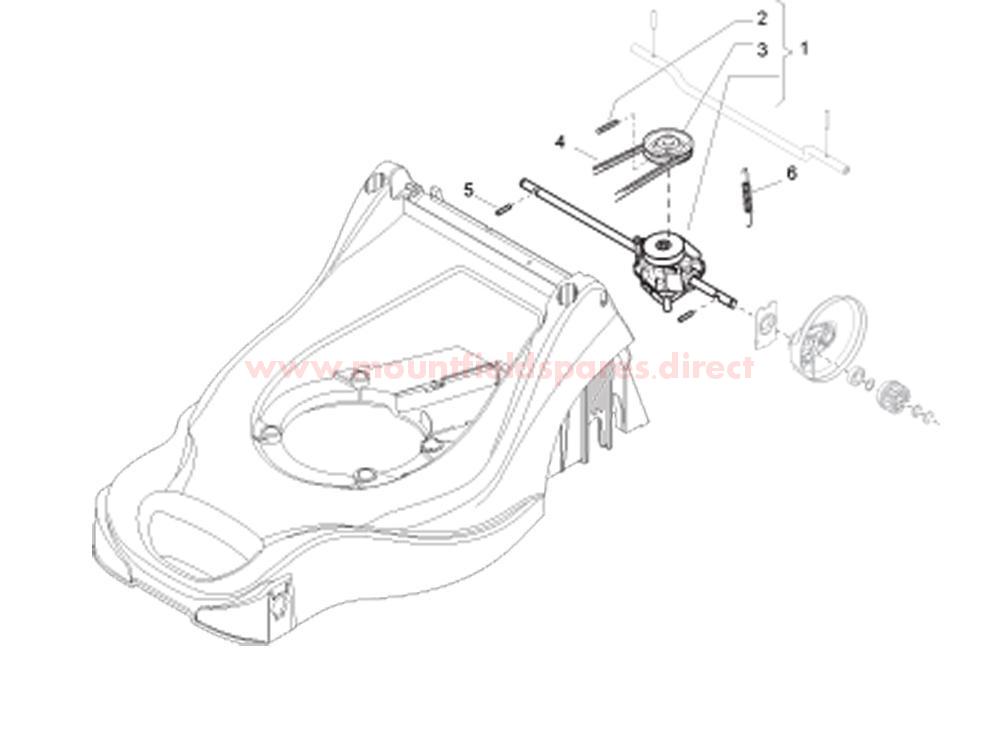

Gear Box assembly details for Mountfield SP 414 (20130205) 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001181003108/0GEARBOX [BLACK]£78.31 Add to
002112645705/0ROLL PIN D=5 x 32£1.65 Add to
003122601909/0PULLEY£6.65 Add to
004135063730/0TRAPEZOIDAL BELT Z26£10.05 Add to
005122753000/0PIN D=5.2 x 25.65£2.84 Add to
006122430216/0TENSION SPRING£10.67 Add to
