Electric Start Controls

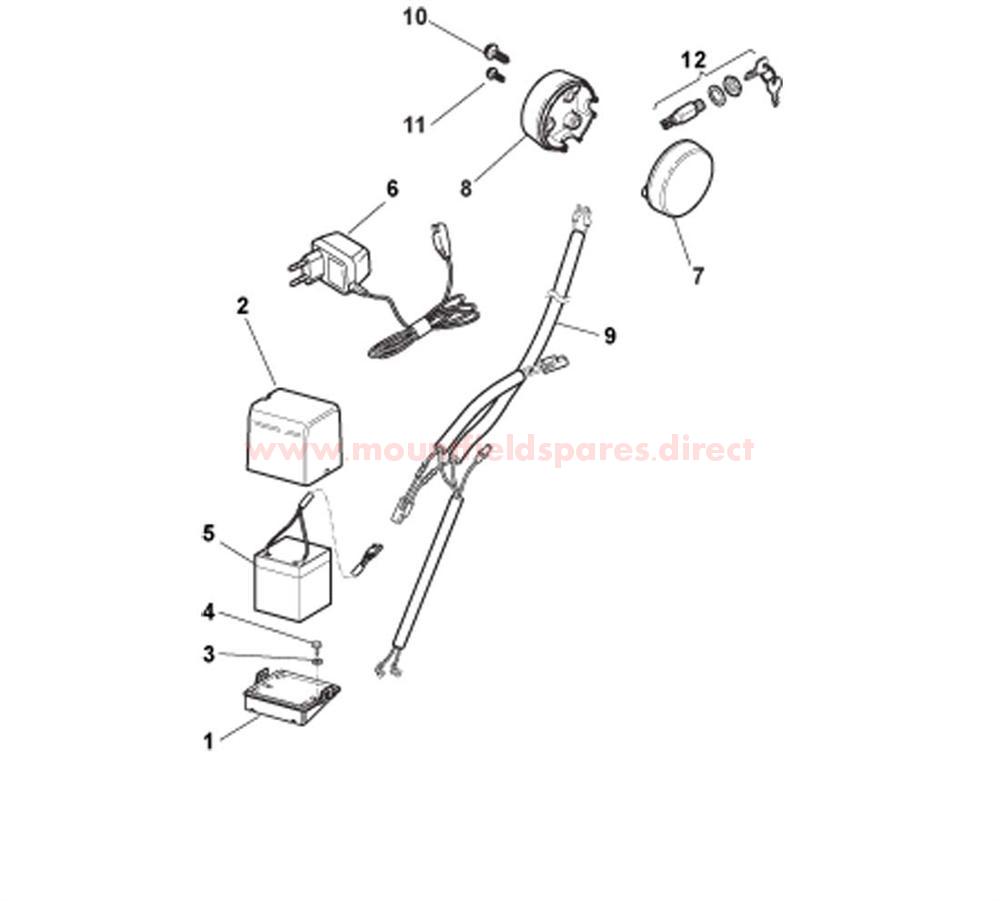

Electric Start Controls assembly details for Mountfield S461R PD ES (20140108) 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322785123/0BATTERY SUPPORT [BLACK]£5.28 Add to
002322109530/0BATTERY COVER£4.74 Add to
003112521310/0WASHER M4 4.3 x 9 x 0.8£2.46 Add to
004112731590/0SELF-TAPPING SCREW 3.5X19£2.46 Add to
005118120064/0BATTERY 12V 4.5AH CABLE [no Returns on this item]£41.28 Add to
006118204121/1LCBATTERY CHARGER CB03 UK£26.76 Add to
006118204121/1LCBATTERY CHARGER CB03 UK£26.76 Add to
007322722800/0LEFT IGNITION COVER£9.96 Add to
008322722801/0RIGHT IGNITION COVER£2.46 Add to
009118204195/0ELECTRIC START CABLE£64.20 Add to
010112728702/0SELF-TAP SCREW WN1451 K50 X 40£3.60 Add to
011112728691/0SELF-TAP SCREW WN1411 KA40 x 16£2.46 Add to
012118450051/0IGNITION SWITCH ASSEMBLY£15.12 Add to
