Electric Controls

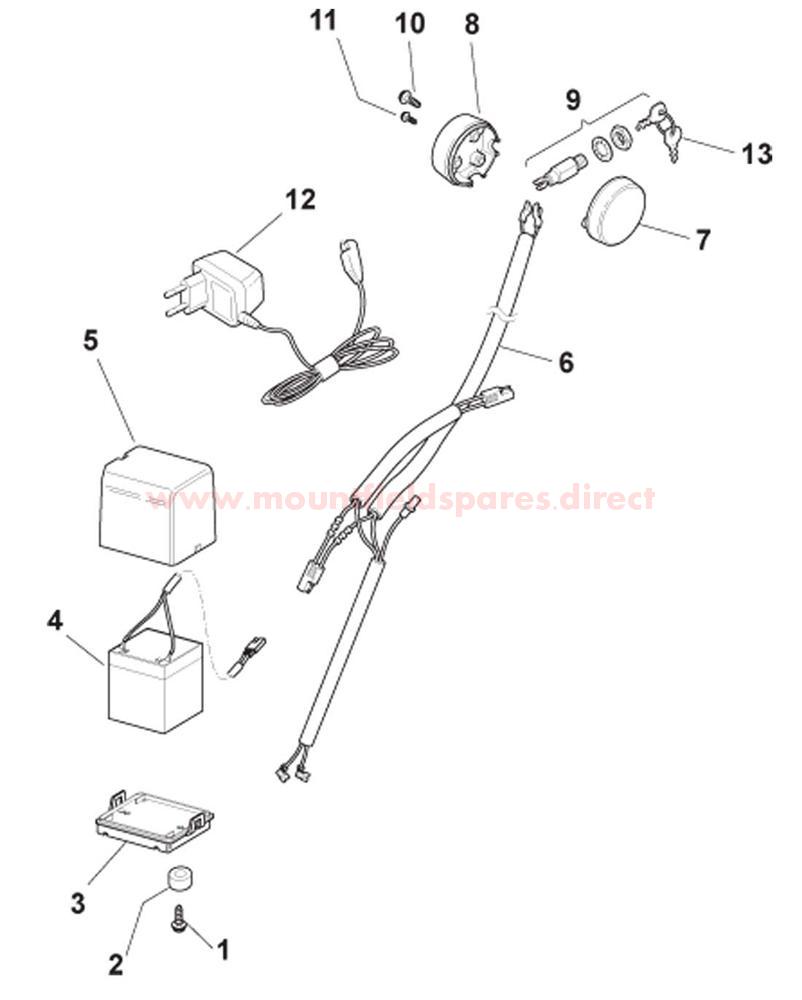

Electric Controls assembly details for Mountfield S461PD ES (20140108) 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112731590/0SELF-TAPPING SCREW 3.5X19£2.46 Add to
002125160012/0SPACER£2.46 Add to
003322785123/0BATTERY SUPPORT [BLACK]£5.28 Add to
004118120064/0BATTERY 12V 4.5AH CABLE [no Returns on this item]£41.28 Add to
005322109530/0BATTERY COVER£4.74 Add to
006118204192/3ELECTRIC START CABLE£33.90 Add to
007322722801/0RIGHT IGNITION COVER£2.46 Add to
008322722800/0LEFT IGNITION COVER£9.96 Add to
009118450051/0IGNITION SWITCH ASSEMBLY£15.12 Add to
010112728702/0SELF-TAP SCREW WN1451 K50 X 40£3.60 Add to
011112728691/0SELF-TAP SCREW WN1411 KA40 x 16£2.46 Add to
012118204121/1LCBATTERY CHARGER CB03 UK£26.76 Add to
013118210016/1IGNITION KEY [PAIR]£10.86 Add to
